Crossed Roller Bearing Manufacturer & Supplier
Crossed Roller Bearings for Precision Rotary Applications
TEDIN supplies crossed roller bearings for robot joints, rotary tables and machine tools. Explore standard series and custom options, with replacement specifications reviewed by bearing designation, drawing and application requirements.
What Are Crossed Roller Bearings?
Crossed roller bearings provide compact support for radial loads, axial loads in both directions and tilting moments in precision rotary assemblies.
Combined Load Support in One Bearing Position
In the common crossed cylindrical roller design, adjacent rollers are arranged with their axes alternately at 90 degrees between the inner and outer rings. This arrangement supports combined loads within a compact bearing envelope.
A crossed roller bearing can simplify some paired bearing arrangements, provided that load capacity, stiffness, accuracy and mounting requirements are verified. It is not automatically a direct replacement for an existing bearing set.
Rotary performance depends on the selected bearing configuration, preload or clearance, ring accuracy and the rigidity of the shaft and housing. Crossed tapered roller bearings use a different roller and raceway geometry and should be evaluated separately.
Compact Arrangement
Combines multiple load-support functions in one bearing position, helping simplify space-constrained rotary designs.
Radial, Axial & Moment Loads
Supports loads from multiple directions. Combined loading must be checked against the selected model's ratings and limits.
Rotary Stiffness & Accuracy
Suitable configurations can provide rigid, accurate rotary support when preload, mounting and surrounding structures are properly controlled.
Common applications include robot joints, precision rotary tables, indexing units, machine tool rotary axes and measuring equipment. Selection should follow the loads, motion and accuracy requirements of the specific bearing position.
Crossed Roller Bearing Series
Explore thin-section, split-ring and integrated-ring designs for robot joints, rotary tables and precision rotary assemblies. Choose the structure to match the rotating ring, mounting arrangement and required performance.
RA Series Crossed Roller Bearings
Thin-section designs with reduced cross-sectional dimensions for space-constrained rotary assemblies.
Typical applications: Robot joints, compact rotary units and precision instruments.

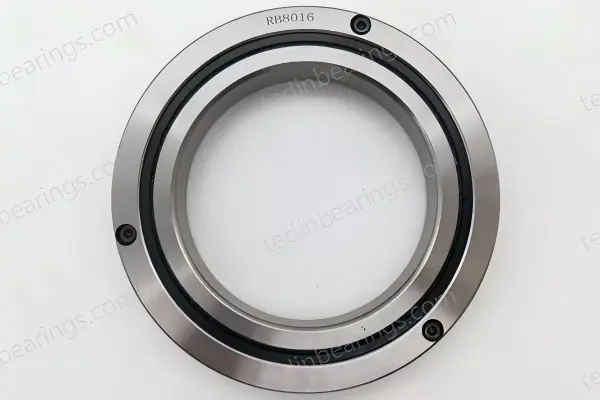

RB Series Crossed Roller Bearings
Typically combines an integrated inner ring with a split outer ring, commonly selected for inner-ring rotation.
Typical applications: Indexing units, rotary tables and industrial robot mechanisms.

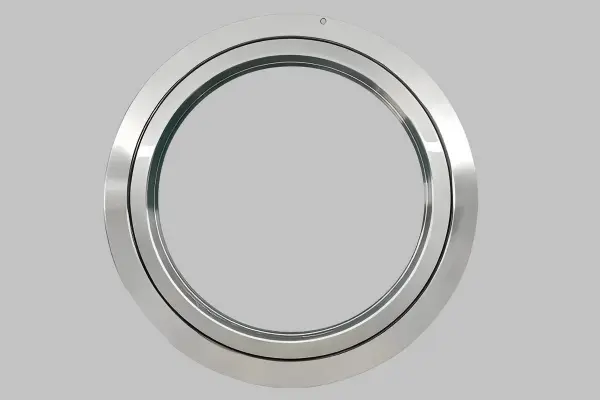

RE Series Crossed Roller Bearings
Typically combines an integrated outer ring with a split inner ring, commonly selected for outer-ring rotation.
Typical applications: Measuring equipment, precision tables and outer-ring rotary assemblies.

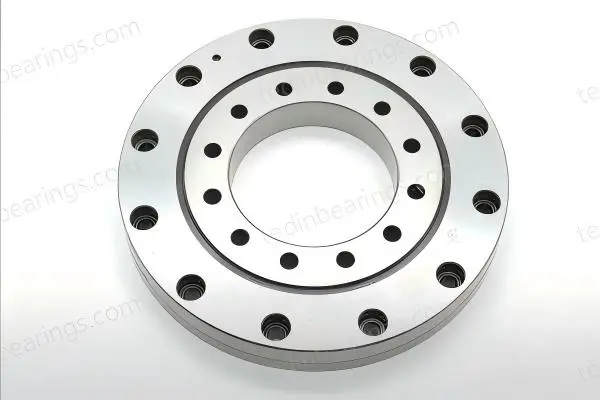

RU Series Crossed Roller Bearings
Integrated inner and outer rings with mounting holes for bolted installation. Verify the hole pattern and locating dimensions for the assembly.
Typical applications: Robot arms, rotary platforms and automation equipment.

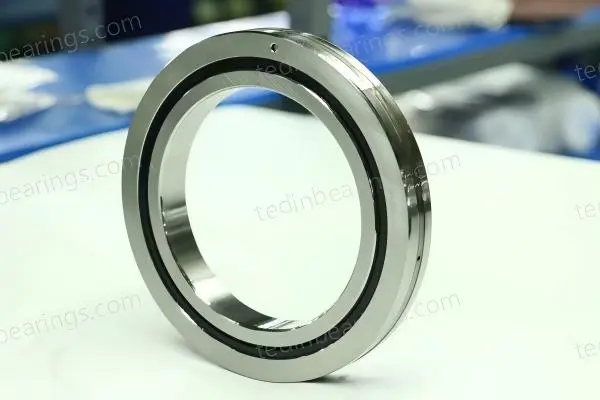

CRB Series Crossed Roller Bearings
Crossed cylindrical roller designs commonly using a split outer ring. Confirm the full designation for roller guidance, seals and clearance or preload.
Typical applications: Precision rotary units, machine tools and inspection systems.

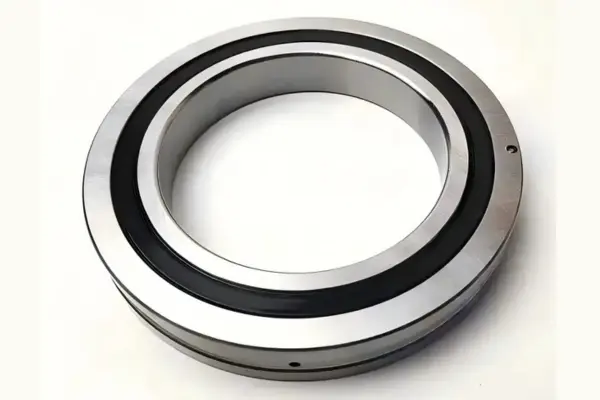

CRBH Series Crossed Roller Bearings
Typically uses integrated inner and outer rings for rigid rotary support. Load capability and mounting requirements depend on the specific model.
Typical applications: Precision rotary tables, machining centers and positioning platforms.

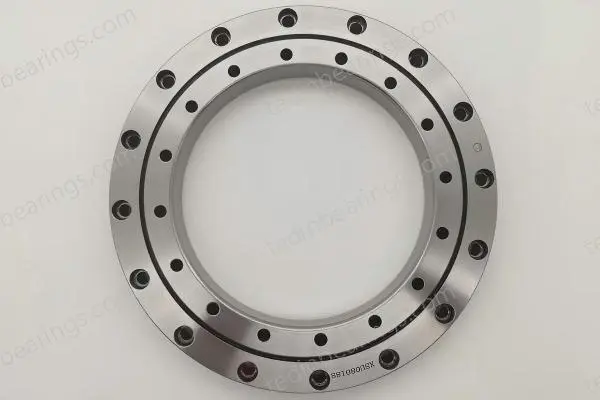

XSU Series Crossed Roller Bearings
Crossed roller designs for rotary assemblies. Confirm ring structure, mounting holes, seals and lubrication provisions against the model drawing.
Typical applications: Automation modules, rotary tables and precision positioning equipment.

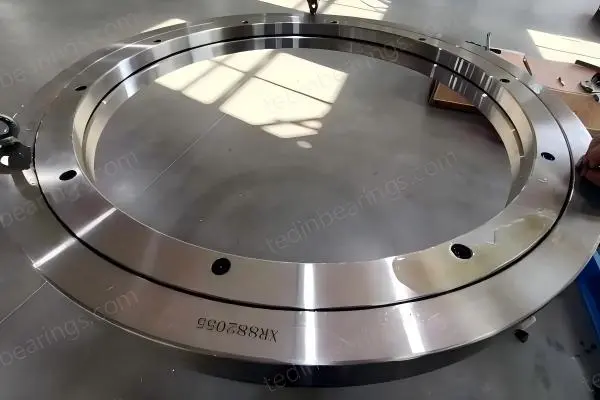

Crossed Tapered Roller Bearings
Uses tapered rollers rather than cylindrical rollers. Evaluate load ratings, preload, operating speed and mounting separately from cylindrical roller designs.
Typical applications: Machine tool rotary axes, rotary tables and large precision assemblies.
Need Help Matching a Bearing Series?
Send the complete bearing designation, manufacturer reference or drawing, together with your application requirements. TEDIN can review the configuration and available supply options before quotation.
Advantages of Crossed Roller Bearings
Crossed roller bearings help designers combine load support, compact dimensions and rotary stiffness. The benefits depend on selecting the right configuration and mounting it correctly.
Combined Load Support
One bearing can support radial loads, axial loads in both directions and overturning moments. This helps consolidate load support in one rotary position, with capacity checked for the actual combination of loads.
Space-Saving Rotary Design
A compact bearing envelope can reduce the space needed for separate radial and thrust supports. Some multi-bearing arrangements can be simplified when load capacity, stiffness and mounting requirements are satisfied.
High Rotary Stiffness
Roller-to-raceway line contact and a suitable preload can help limit displacement under load. Assembly stiffness also depends on ring support, housing rigidity and the clamping arrangement.
Precision Rotary Support
Appropriate bearing accuracy and controlled installation can help achieve low radial and axial runout. Positioning accuracy and repeatability also depend on the drive, feedback system and surrounding structure.
Crossed Roller Bearing Applications
From robot joints to precision rotary tables, crossed roller bearings support compact rotary mechanisms under combined loads. Each application requires its own load, motion and mounting checks.
Industrial Robots
Used in joint, wrist and arm rotation units where space is limited. Selection should account for overturning moments, reversing motion, joint stiffness and starting torque.
Rotary Tables
Supports indexing tables and rotary platforms under combined loads. Check workpiece weight, load offset, table stiffness, runout and the indexing duty cycle.
Explore Rotary Table Bearings
Machine Tools
Used in rotary axes, tool changers and precision tables. Verify cutting loads, preload, rotational accuracy, operating speed and thermal conditions for the specific bearing position.
Explore Machine Tool Bearings
Inspection & Measuring Equipment
Provides rotary support for measuring instruments and inspection platforms. Important checks include radial and axial runout, torque variation, mounting accuracy and temperature stability.
Medical Equipment
Can support compact positioning and rotary mechanisms. Confirm motion torque, load deflection, lubrication, sealing and any equipment-specific cleanliness or validation requirements.
Automation Equipment
Used in rotary modules, handling systems and positioning devices. Check acceleration, reversing cycles, peak loads, mounting interfaces and maintenance access.
How to Select Crossed Roller Bearings
Check these six factors to select a suitable bearing or verify an existing model replacement.
Loads & Bearing Life
Check radial loads, axial loads and overturning moments, including peak loads and required service life.
Rotating Ring
Confirm whether the inner or outer ring rotates, then choose a suitable ring structure and support arrangement.
Dimensions & Mounting
Verify bore, outside diameter, width, mounting holes and fits, together with shaft and housing support.
Accuracy & Preload
Specify radial and axial runout, required stiffness, and preload or clearance for the rotary assembly.
Operating Conditions
Confirm speed, reversing or oscillating motion, temperature, lubrication and sealing requirements.
Replacement Verification
Compare the full original designation and drawing. Matching dimensions alone does not guarantee interchangeability.
Custom Crossed Roller Bearing Solutions
Send your drawing, reference model and operating requirements. TEDIN can review the following custom options, subject to technical feasibility.
| Customization Item | Options for Review |
|---|---|
| Dimensions & Mounting | Custom bore, outside diameter, width, mounting holes and locating dimensions. |
| Ring & Gear Structure | Split or integrated rings; internal or external gear interfaces. |
| Accuracy & Preload | Specified accuracy grade, radial and axial runout, clearance or preload. |
| Material & Heat Treatment | Material, hardness and heat-treatment specifications suited to the application. |
| Surface Protection | Rust-preventive oil, black oxide or phosphating where suitable; protective packaging. |
| Sealing & Lubrication | Open or sealed configurations, lubricant selection and lubrication provisions. |
Crossed Roller Bearing Quality Control
Inspection covers dimensions, runout, clearance or preload, and final condition against the agreed specifications. Explore our bearing quality control process for production and inspection details.
Dimensional Inspection
Bore, outside diameter, width and mounting dimensions are checked against the approved drawing.
Runout Inspection
Radial and axial runout are measured using the specified references and inspection conditions.
Clearance & Preload
Internal clearance or preload is verified to the specification, with rotation checks after assembly.
Final Inspection & Packing
Final checks are followed by cleaning, rust protection and protective packaging for storage and shipment.
Crossed Roller Bearing FAQs
Common questions about selection, replacement, custom options, quotation and delivery.
What is a crossed roller bearing?
A cylindrical crossed roller bearing has rollers arranged alternately at right angles. It supports radial loads, axial loads in both directions and overturning moments in one compact assembly. Capacity must be checked for the actual combined loads.
Are “cross roller” and “crossed roller” bearings the same?
The terms usually refer to the same bearing type. Confirm the full model designation, as ring structure, roller type and mounting details can differ.
How do I select the right crossed roller bearing?
Check loads, required life, rotating ring, mounting dimensions, accuracy, preload and operating conditions. See our selection guide or send TEDIN your drawing and application requirements.
Can TEDIN supply replacements for THK, IKO or other brands?
TEDIN can review replacement options using the original manufacturer's full designation and drawing. Dimensions, mounting, ring structure, accuracy, preload and load ratings must be compared. Matching dimensions alone does not guarantee interchangeability.
Do you offer custom crossed roller bearings?
Custom options can include dimensions, mounting holes, ring or gear structure, accuracy, preload, material, seals and lubrication. Send your drawing and requirements for a technical feasibility review.
What information is needed for a quotation?
Send the full bearing designation or drawing, order quantity and required delivery date. For a new design, include loads, speed, mounting, accuracy and preload or clearance requirements.
What is the lead time for an order?
Lead time depends on stock availability, model, quantity and special requirements. Send your designation or drawing so TEDIN can confirm availability and an estimated delivery schedule with the quotation.
Explore More Bearing Solutions
Explore other bearing options for rotary tables, precision spindles and industrial shaft support.
Cylindrical Roller Bearings
High radial load capacity for shaft support in machine tools, gearboxes and industrial equipment.
View Bearing Range →
YRT Turntable Bearings
Combined axial and radial support for precision rotary tables and indexing assemblies.
View Bearing Range →
Tapered Roller Bearings
Combined radial and axial load support for gearboxes, spindles and heavy-duty machinery.
View Bearing Range →
Angular Contact Ball Bearings
Precision bearing options for high-speed spindles and assemblies carrying radial and axial loads.
View Bearing Range →Find the Right Crossed Roller Bearing
Need a standard bearing, a replacement or a custom design? Send your full model number or drawing, quantity and application requirements. TEDIN can review dimensions, mounting, loads, accuracy and preload to confirm suitable supply options before quotation.
