Matched Angular Contact
Ball Bearings
Matched angular contact ball bearings are precision-matched bearing sets for controlled preload, higher rigidity, and accurate shaft positioning.
Factory-matched bearing solution
Pairs and sets configured for preload, rigidity, and load direction.
Matched Sets
Duplex / Triplex / Quadruplex
Controlled Preload
Stable rigidity and accuracy
Contact Angle
Consistent within each set
Ready to Install
Factory-matched bearing sets
Matched bearing arrangements
Matched angular contact ball bearings are supplied in different arrangements to meet preload, rigidity, and axial load direction requirements.

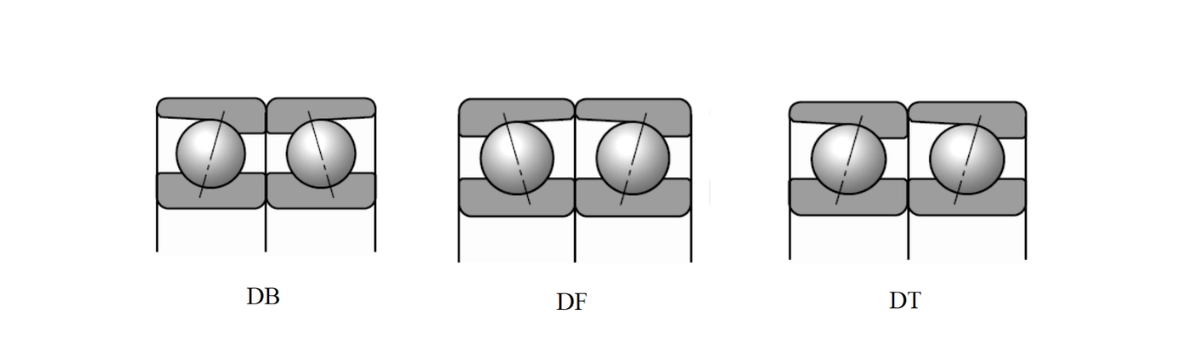

Duplex Sets
Common two-bearing matched arrangements.
Duplex sets are used for paired support, bidirectional positioning, or higher one-direction axial load capacity.

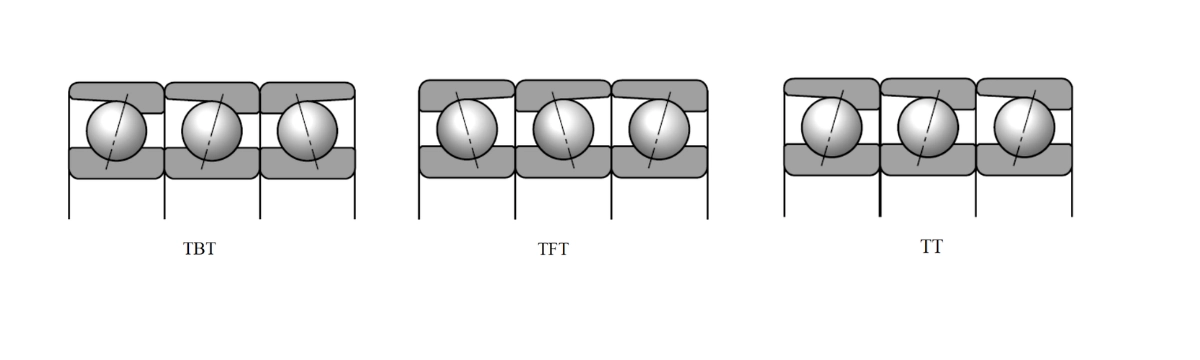

Triplex Sets
Three-bearing arrangements for higher stiffness and axial capacity.
Triplex sets combine tandem and opposed positions to increase rigidity and support demanding shaft layouts.

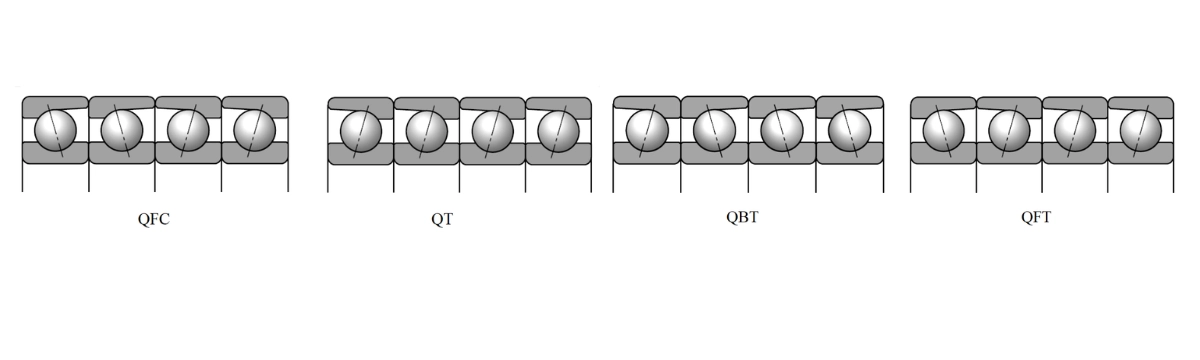

Quadruplex Sets
Four-bearing arrangements for high rigidity precision spindle assemblies.
Quadruplex sets provide increased stiffness and load capacity for high precision spindle and rotary systems.
Key performance parameters controlled in matched bearing sets
For any two bearings within a matched set, the following differences must be strictly controlled to ensure consistent preload, contact angle, and assembly accuracy.
Mean bore and outside diameter variation
Difference in the average bore diameter and outside diameter between any two bearings.
Inner and outer ring radial runout variation
Difference in radial runout of inner and outer rings between any two bearings.
Actual contact angle variation
Difference in the actual contact angle between any two bearings in the matched set.
Adjacent bearing protrusion variation
Difference in the stand-out amount / protrusion between adjacent bearings.
Universal matched bearings for flexible arrangements
Universal matching is a key supply method for matched angular contact ball bearings. Universally matched bearings can be combined with bearings of the same matching class to form different arrangements while maintaining the specified preload or clearance.
One universal bearing type, multiple assembly possibilities
Universal matched bearings make it easier to build DB, DF, DT and multi-bearing sets without additional adjustment during installation.
Universal matched bearing
Same matching class, controlled preload or clearance.
Definition
A universal matched angular contact ball bearing is manufactured so that it can be mounted together with another bearing of the same universal matching class to achieve the intended preload or clearance in the selected arrangement.
Simplified inventory
One universal bearing type can support several matched arrangements, helping reduce stock complexity.
Controlled preload
Bearings are matched to achieve the required preload or clearance when assembled as a set.
Flexible assembly
Universal matching supports DB, DF, DT and multi-row arrangements without custom adjustment.
Preload selection for matched angular contact ball bearings
Matched bearing sets are available with light, medium or heavy preload to balance speed, rigidity, running accuracy and temperature rise.
Correct preload helps matched angular contact ball bearings maintain stable contact angle, axial stiffness and service life.

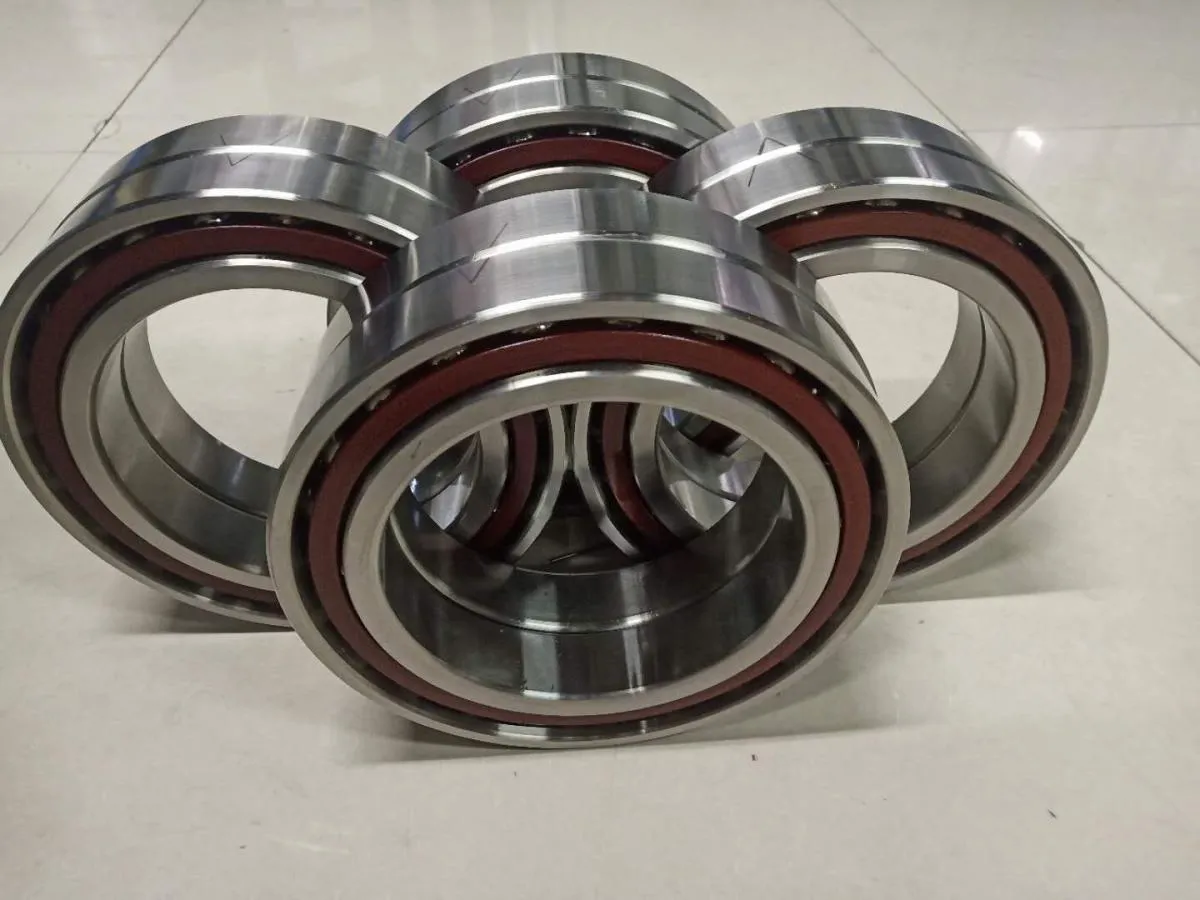

Matched bearing set
Factory paired for consistent preload.
Applications of matched angular contact ball bearings
Matched bearing sets are used in precision rotary systems where preload, rigidity and running accuracy are critical.
Machine Tool Spindles
- High rigidity spindle support
- Stable preload and axial positioning
- Precision bearing arrangement
Grinding Spindles
- Accurate rotation for fine finishing
- Low runout bearing performance
- High-speed precision spindle support
High-Speed Motors
- Low friction running performance
- Controlled temperature rise
- Compact matched bearing sets
Robotics
- Precision joints and rotary modules
- Compact bearing arrangement
- Stable rigidity in limited space

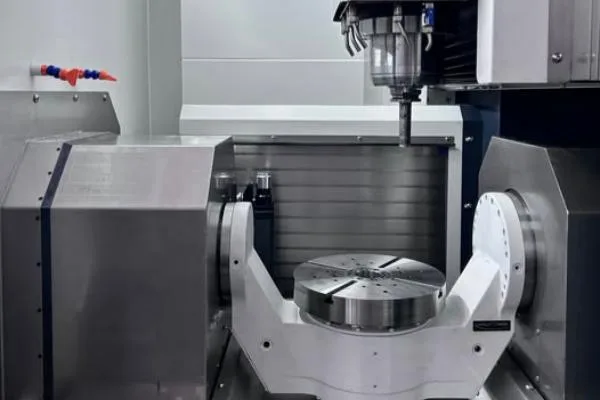

Precision Rotary Tables
- Axial stiffness under combined loads
- Stable positioning accuracy
- High precision rotary support
Test & Measuring Equipment
- High precision bearing arrangements
- Stable runout performance
- Reliable rotation for measuring systems
Factory capability for matched bearing production

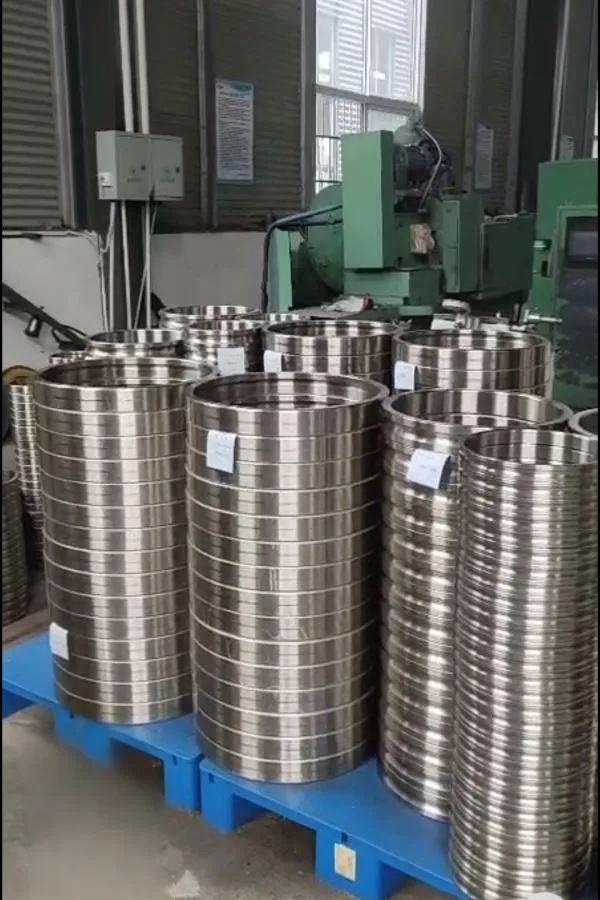

Precision grinding and dimensional control

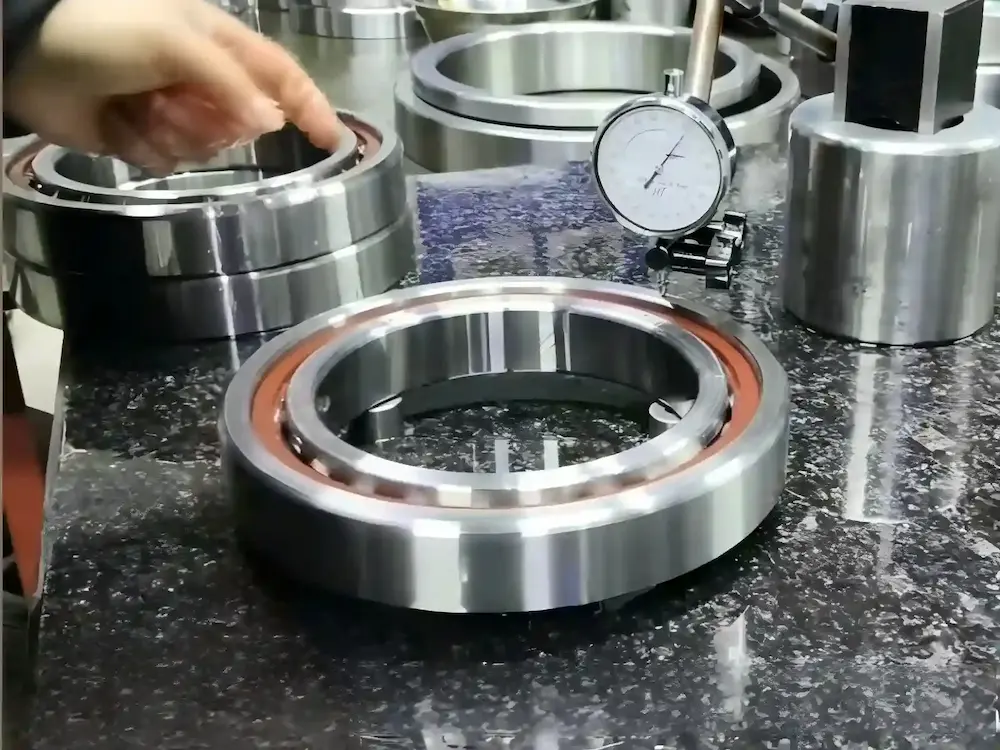

Runout and dimensional inspection

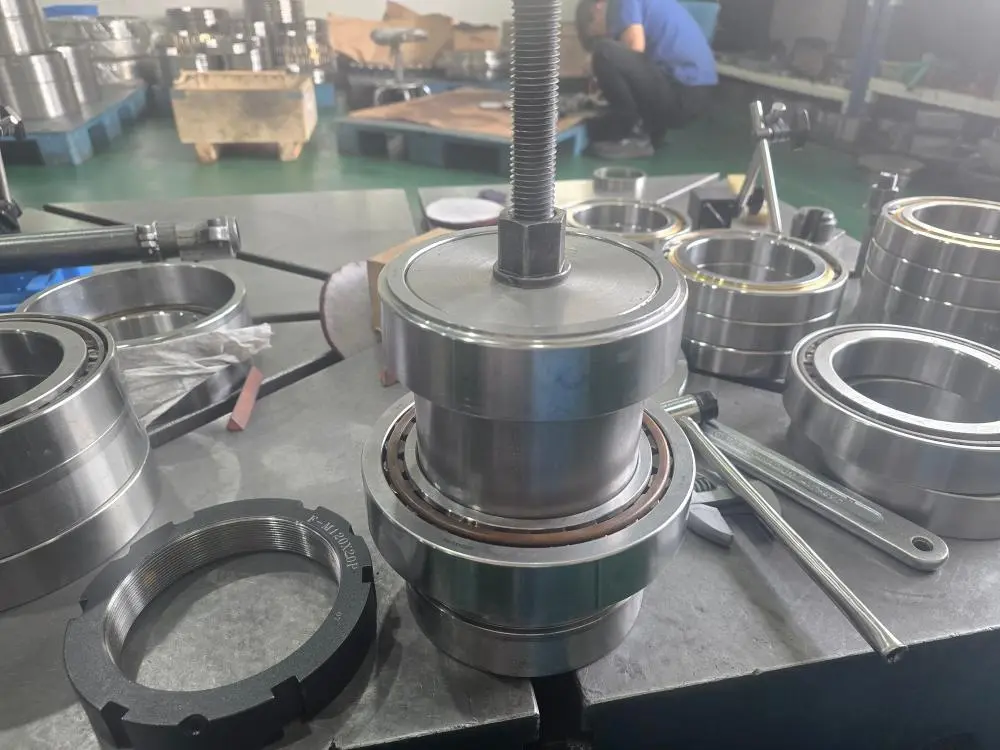

Preload and clearance verification
Matched set assembly and marking

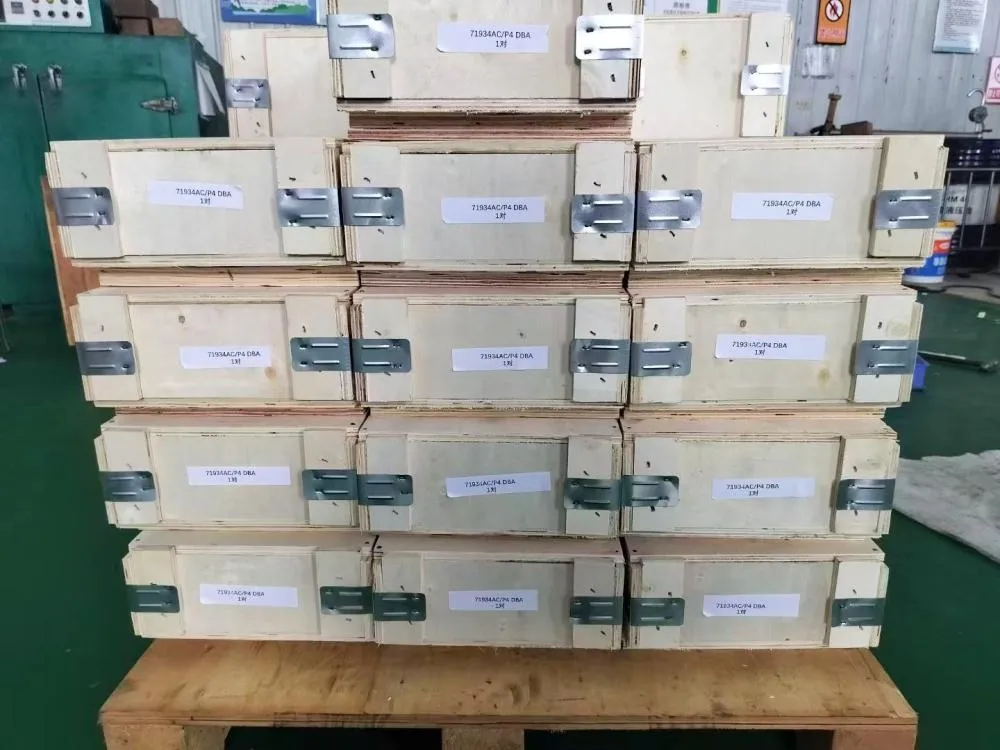

Packing and traceability control
- Precision grinding
- Preload matching
- Runout inspection
- Set marking
- Traceable packing
How to specify matched bearing sets
To ensure correct preload, rigidity and assembly accuracy, matched angular contact ball bearing sets should be specified with clear technical requirements before quotation or production.
Basic size
Bearing model and dimensions
Confirm the bearing series, bore size, outside diameter and width, such as 70, 72, 718 or 719 series.
Set type
Matched arrangement
Specify the required arrangement, such as DB, DF, DT, triplex or quadruplex, according to load direction and rigidity.
Load angle
Contact angle
Select the contact angle based on speed, axial load and stiffness requirements, commonly 15°, 25° or 40°.
Preload
Preload level
Define light, medium or heavy preload according to spindle rigidity, heat generation and running accuracy requirements.
Accuracy
Precision grade
Confirm precision class, radial runout requirement and dimensional tolerance for high-speed or precision applications.
Application
Operating conditions
Share speed, load direction, lubrication method, temperature range and installation space for accurate recommendation.
Need help selecting a matched bearing set?
Provide your bearing model, arrangement, preload requirement and application conditions. Our engineering team can recommend a suitable matched configuration.
Proper handling of matched bearing sets
Matched angular contact ball bearing sets are manufactured and supplied as coordinated assemblies. Correct handling, orientation and mounting practice are important to maintain the intended preload, rigidity and running accuracy.
Reduce installation errors and protect matched set performance.
Duplex, triplex and quadruplex angular contact ball bearing sets.
Mounting direction, cleanliness, fitting accuracy and lubrication condition.
Keep bearings as a complete matched set
Do not mix bearings from different matched sets. Each set should be kept together from unpacking to installation to preserve the specified preload and matching accuracy.
Follow the marked mounting direction
Install the bearings according to the set markings and arrangement direction. Incorrect orientation may change the load path and affect axial rigidity.
Control shaft and housing accuracy
Shaft shoulders, housing bores, spacers and clamping surfaces should be clean, square and dimensionally accurate to avoid preload deviation after mounting.
Apply proper mounting force
Mounting force should be applied to the ring being fitted. Avoid transmitting force through the rolling elements, which may damage raceways and reduce bearing life.
Verify lubrication and running condition
Confirm the lubrication method, lubricant quantity and initial running condition according to speed, load and temperature requirements.
Matched bearing sets should not be adjusted randomly after delivery
The preload and arrangement are controlled during matching. If special installation conditions require spacer adjustment or preload verification, consult the bearing supplier before modification.
Need help with matched bearing selection?
If you are specifying universal matched bearings, DB / DF / DT arrangements or precision bearing sets for a specific application, our team can help confirm the suitable configuration.
Can you supply universal matched bearings?
Yes. TEDIN can supply universal matched angular contact ball bearings for flexible pairing. Bearings of the same universal matching class can be combined into different arrangements according to application requirements.
Can matched bearing sets be supplied as DB, DF or DT?
Yes. Matched bearing sets can be supplied in DB, DF, DT and multi-row configurations such as triplex or quadruplex sets, depending on load direction, rigidity and mounting requirements.
What information is needed for quotation?
Please provide the bearing model or dimensions, arrangement type, contact angle, preload level, precision grade, lubrication method, speed, load and application conditions. This helps ensure accurate selection and quotation.
Can you meet specific preload or precision requirements?
Yes. Matched bearing sets can be supplied according to required preload and precision specifications. For high-speed spindle or precision equipment applications, detailed working conditions are recommended for technical confirmation.
Can you support OEM or replacement applications?
Yes. TEDIN supports both OEM projects and replacement requirements. If an original bearing code is available, we can help review the equivalent matched bearing configuration and provide a suitable recommendation.
