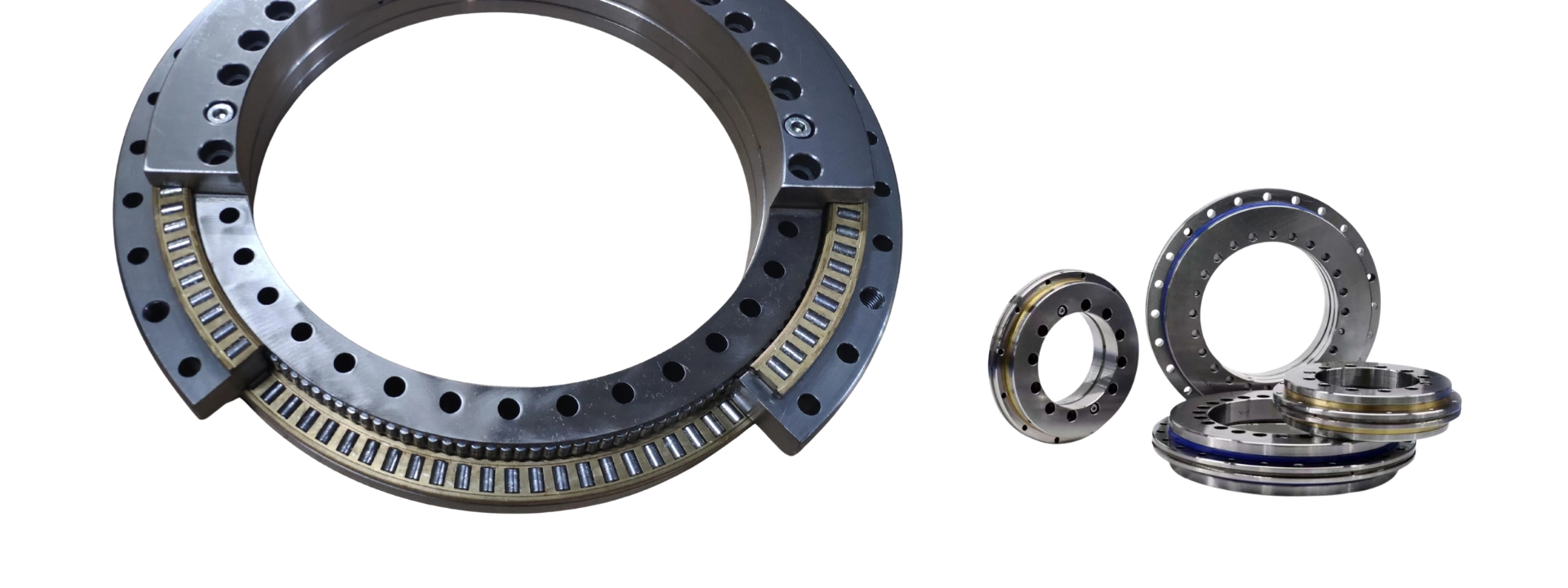

YRT Turntable Bearings Manufacturer for Precision Rotary Applications
TEDIN manufactures and supplies precision YRT turntable bearings for CNC rotary tables, indexing tables, measuring equipment and automation systems. Our axial-radial turntable bearings are designed for high rigidity, accurate rotary positioning and combined axial, radial and tilting moment load support.
What Are YRT Turntable Bearings?
YRT turntable bearings are precision axial-radial bearings for rotary tables, indexing tables and positioning axes. They combine high rigidity, running accuracy and combined load support in one compact unit.
Axial-Radial Layout
Two axial roller rows and one radial roller row support loads from multiple directions.
High Rigidity & Accuracy
Designed for stable rotary positioning under axial, radial and tilting moment loads.
Precision Rotary Units
Used in CNC rotary tables, indexing tables, inspection equipment and automation systems.
Built for Stable Precision Rotary Motion
YRT turntable bearings provide rigid support and accurate rotation for rotary tables, indexing units and positioning axes.
With axial and radial roller rows integrated into one compact unit, they help maintain stability under combined working loads.
Rigid Rotary Support
Helps reduce deflection and improve table stability during machining or positioning.
Precise Running Performance
Supports smooth rotation and repeatable positioning in precision rotary applications.
Combined Load Capacity
Handles axial loads, radial loads and tilting moments within one bearing arrangement.
Ready-to-Mount Design
Compact integrated structure simplifies installation in rotary tables and indexing systems.

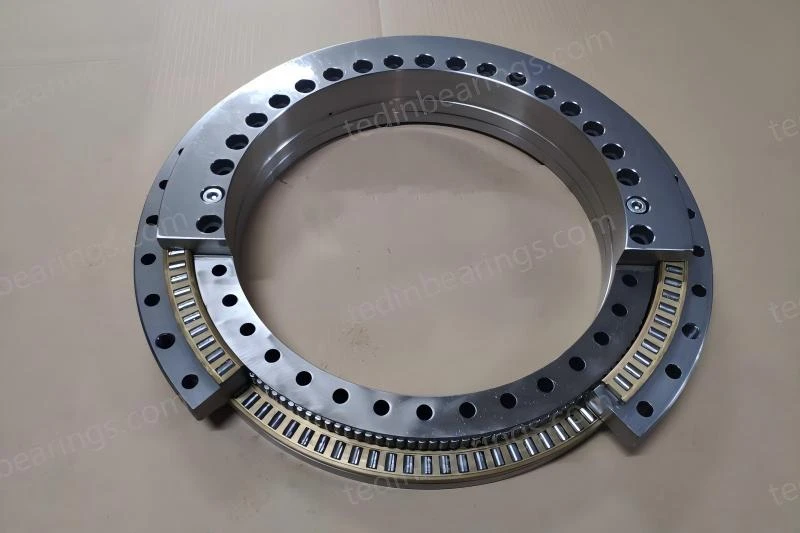

Axial-Radial Structure for Combined Load Support
The integrated axial-radial design enables YRT turntable bearings to deliver stable support in compact rotary systems.
YRT turntable bearings combine two axial roller rows and one radial roller row in a single ready-to-mount unit. This structure allows one bearing to support axial loads, radial loads and tilting moments at the same time.
The preloaded bearing arrangement helps improve rigidity and reduce clearance, which is essential for rotary tables, indexing units and precision positioning axes.
Integrated mounting holes in the inner and outer rings simplify installation and help reduce the need for additional housing components.
| Structure Element | Function |
|---|---|
| Axial Roller Rows | Support axial loads from both directions and help maintain stable rotary positioning. |
| Radial Roller Row | Supports radial loads during rotation and improves overall bearing guidance. |
| Tilting Moment Support | Helps resist overturning forces generated by eccentric loads or machining forces. |
| Preloaded Design | Improves rigidity, reduces clearance and supports accurate rotary movement. |
| Mounting Holes | Inner and outer rings include mounting holes for direct installation into rotary units. |
| Compact Bearing Unit | Combines axial, radial and moment load support in one ready-to-mount assembly. |
Choose the Right Bearing Series for Your Rotary System
TEDIN provides YRT, YRTS and ZKLDF bearing solutions for rotary tables, indexing units and precision positioning systems with different rigidity, speed and friction requirements.

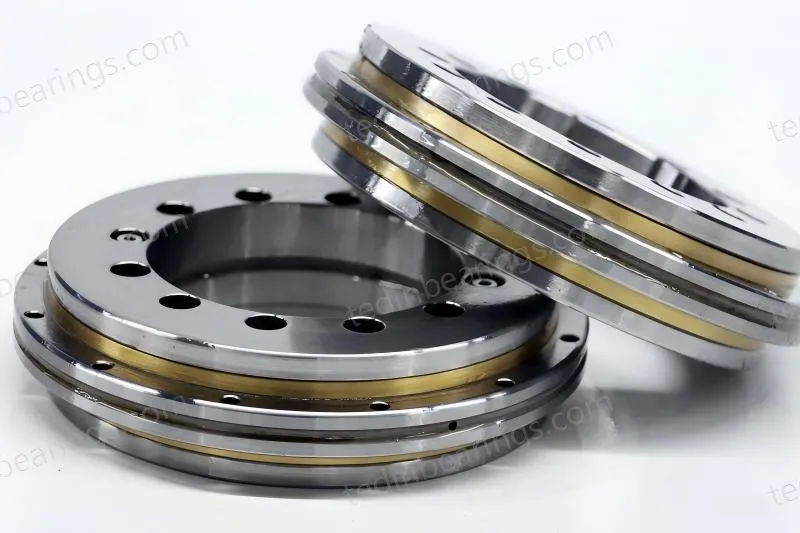

YRT Standard Turntable Bearings
Axial-radial cylindrical roller bearings designed for high rigidity, combined load support and accurate rotary positioning.
Download YRT Series Catalogue

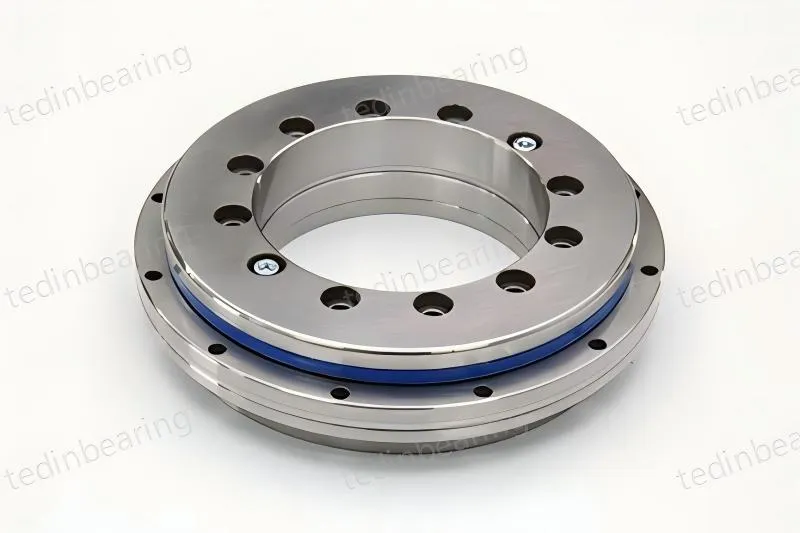

YRTS High-Speed Turntable Bearings
Speed-optimized turntable bearings for rotary axes that require higher rotational speed while maintaining rigidity and running accuracy.
Download YRTS Series Catalogue

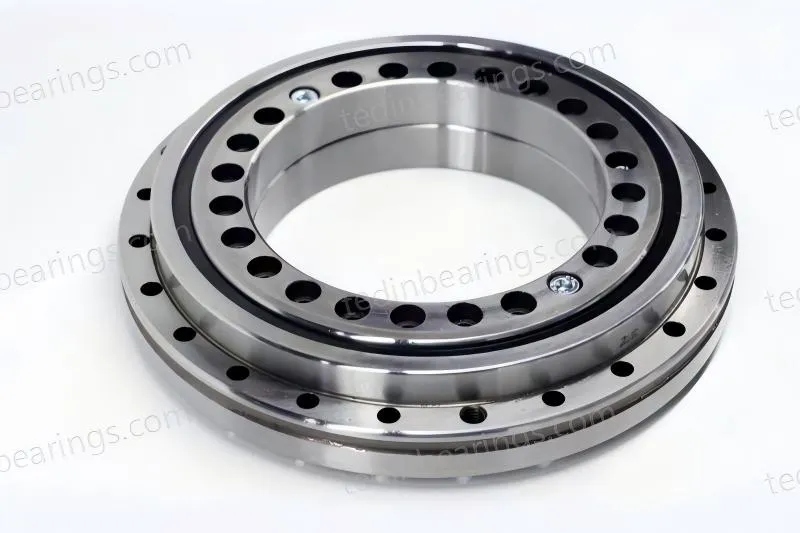

ZKLDF Angular Contact Bearings
Double direction axial angular contact ball bearings for high-speed, low-friction and precision rotary table applications.
Download ZKLDF Series CatalogueYRT Turntable Bearing Specification Overview
TEDIN supplies precision turntable bearings in multiple sizes, accuracy grades and structural options to meet different rotary table and positioning system requirements.
| Specification Item | Available Options |
|---|---|
| Bearing Series | YRT standard turntable bearings, YRTS high-speed turntable bearings and ZKLDF axial angular contact ball bearings. |
| Bore Diameter | 50 mm to 1030 mm. |
| Outside Diameter | 100 mm to 1200 mm. |
| Precision Grade | P5, P4 and P2 accuracy grades are available for different positioning and running accuracy requirements. |
| Bearing Structure | Axial-radial cylindrical roller structure for YRT and YRTS series; double direction axial angular contact ball bearing structure for ZKLDF series. |
| Load Direction | Designed to support axial loads, radial loads and tilting moments in precision rotary applications. |
| Cage Material | Brass cage. |
| Mounting Holes | All bearings are supplied with mounting holes for direct installation. |
| Preload | Preloaded design helps improve rigidity, reduce clearance and support accurate rotary motion. |
| Lubrication | Grease lubrication or oil lubrication options can be selected according to operating speed, load and working conditions. |
| Application Equipment | CNC rotary tables, indexing tables, precision positioning axes, measuring equipment and high-speed rotary platforms. |
| Customization | Special dimensions, precision grades, preload, lubrication requirements and application-specific bearing solutions are available on request. |
Turntable Bearing Applications
TEDIN turntable bearings are used in precision rotary systems that require high rigidity, accurate positioning, stable load support and smooth rotary motion.

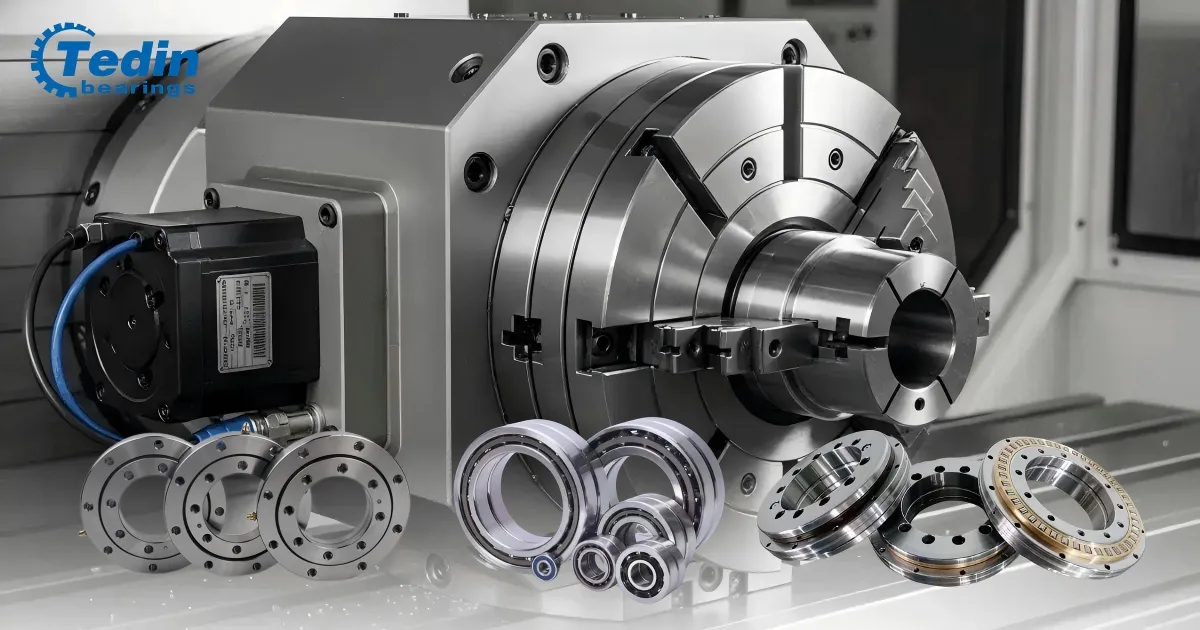

CNC Rotary Tables
YRT and YRTS bearings provide rigid rotary support for CNC rotary tables, helping maintain positioning accuracy under machining loads.

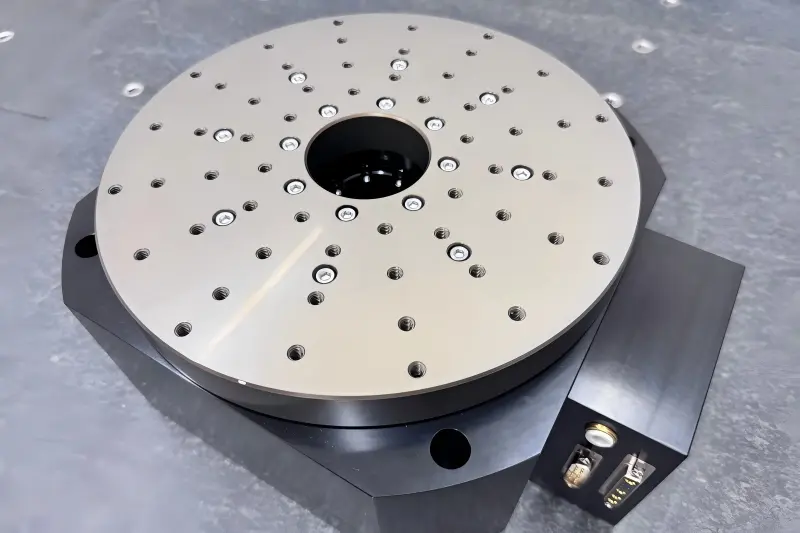

Indexing Tables
The integrated bearing structure supports repeatable indexing movement and stable positioning in automated production equipment.

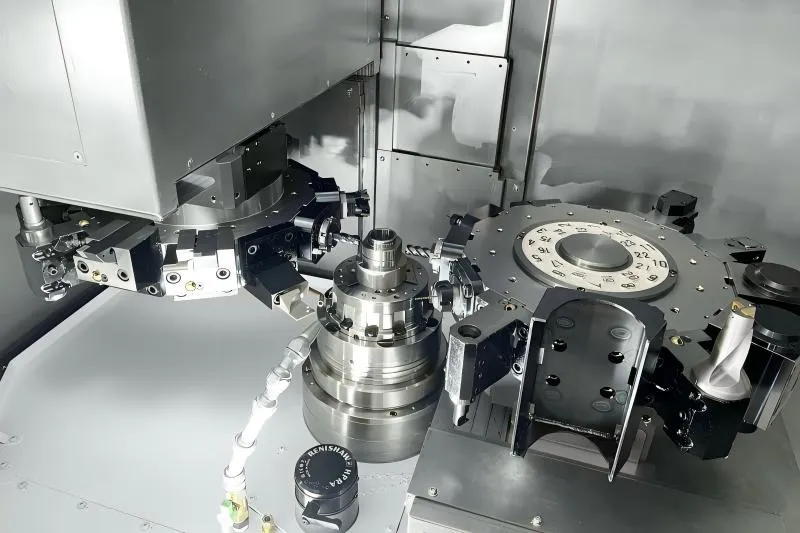

Precision Positioning Axes
High-precision turntable bearings help improve rotary accuracy, rigidity and motion stability in positioning axes and rotary units.
Measuring Equipment & Rotary Platforms
ZKLDF bearings are suitable for high-speed, low-friction rotary platforms and measuring systems that require smooth precision motion.
How to Choose Between YRT, YRTS and ZKLDF Bearings
Compare the main selection factors to choose the suitable bearing series for your rotary table, indexing unit or precision positioning system.
| Bearing Series | Best For | Main Advantage | Typical Applications |
|---|---|---|---|
| YRT | High rigidity and combined load support | Strong axial, radial and tilting moment capacity | CNC rotary tables, indexing tables, machine tool rotary axes |
| YRTS | Higher speed rotary motion | Speed-optimized structure with stable running accuracy | High-speed rotary tables, precision machine tool axes |
| ZKLDF | Low-friction and smooth precision rotation | High speed capability with low friction torque | Measuring equipment, precision rotary platforms, optical inspection systems |
Why Choose TEDIN Turntable Bearings
Precision manufacturing, flexible customization and strict inspection for reliable rotary table performance.
Precision Manufacturing
Controlled machining and grinding help ensure stable accuracy, smooth rotation and reliable bearing performance.

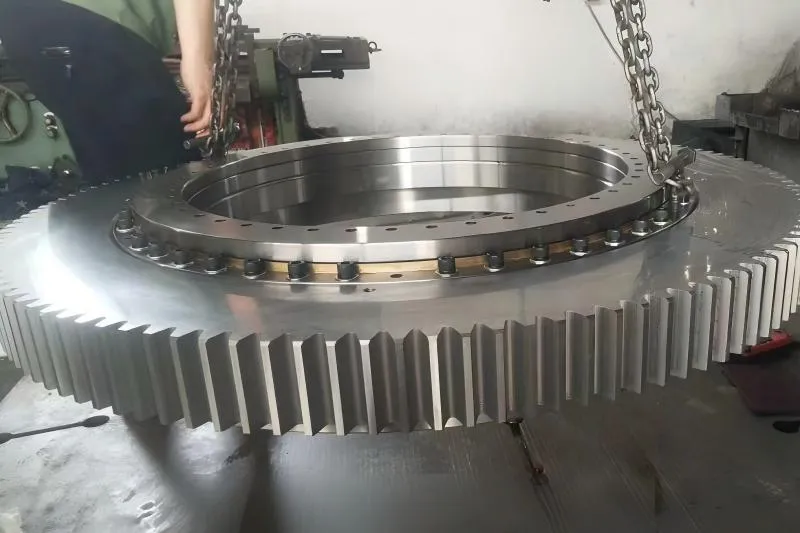

Custom Solutions
Custom dimensions, preload, lubrication, mounting holes and accuracy grades can be supported for special rotary systems.
Quality Control
Key dimensions, rotation accuracy, clearance and preload are inspected before delivery to support consistent product quality.
Wide Size Capability
Bore diameters from 50 mm to 1030 mm and outside diameters from 100 mm to 1200 mm.
P5 / P4 / P2 Grades
Multiple precision grades are available for rotary accuracy, positioning and machine tool applications.
Selection Support
TEDIN helps select YRT, YRTS or ZKLDF bearings according to load, speed, rigidity and installation conditions.
Related Technical Support
Review rotary table bearing selection, accuracy measurements and mounting requirements when specifying or installing YRT turntable bearings.
Rotary Table Bearing Selection Guide
Compare YRT and crossed roller bearings by combined loads, tilting moments, stiffness, speed and mounting requirements.
Read Selection Guide →
Runout & Indexing Accuracy Guide
Distinguish axial and radial runout from angular positioning errors before checking the bearing support, encoder or drive.
Read Accuracy Guide →
Rotary Table Bearing Installation Guide
Check mounting faces, fits, bolt tightening and lubrication, then verify rotation, runout and temperature after assembly.
Read Installation Guide →YRT Turntable Bearing FAQs
Common questions about YRT, YRTS and ZKLDF selection, accuracy, customization and replacement.
What types of turntable bearings does TEDIN supply?
TEDIN supplies YRT and YRTS axial-radial roller bearings and ZKLDF double direction axial angular contact ball bearings for rotary tables, indexing units, positioning axes and measuring systems.
What is the difference between YRT, YRTS and ZKLDF bearings?
YRT bearings provide rigid support under combined axial, radial and moment loads. YRTS bearings are optimized for higher-speed rotary applications. ZKLDF bearings use an angular contact ball design for low-friction, high-speed rotation. Selection depends on loads, speed, rigidity, accuracy and mounting conditions.
What accuracy grades are available for turntable bearings?
Available accuracy specifications depend on the bearing series and model. Send your required dimensional tolerances and axial and radial runout limits so TEDIN can confirm the applicable grade and inspection criteria. Bearing accuracy alone does not determine the positioning accuracy of the complete rotary system.
Can TEDIN provide custom turntable bearings?
TEDIN can review custom dimensions, mounting interfaces, preload, lubrication and accuracy requirements based on your drawing and operating conditions. Available options are subject to technical feasibility and the selected bearing design.
What information is needed for turntable bearing selection?
Provide the full model designation or drawing, axial and radial loads, overturning moment, speed and duty cycle. Include mounting dimensions, required runout, rigidity, lubrication and operating temperature where available.
Can TEDIN help replace existing turntable bearing models?
TEDIN can review replacement options using the original manufacturer's full model designation and drawing. Dimensions, mounting holes, tolerances, preload, load ratings and permissible speed must be compared. Matching dimensions alone does not guarantee interchangeability.
Explore More Precision Bearing Solutions
Discover related TEDIN bearing products for machine tools, rotary systems and high-precision industrial applications.

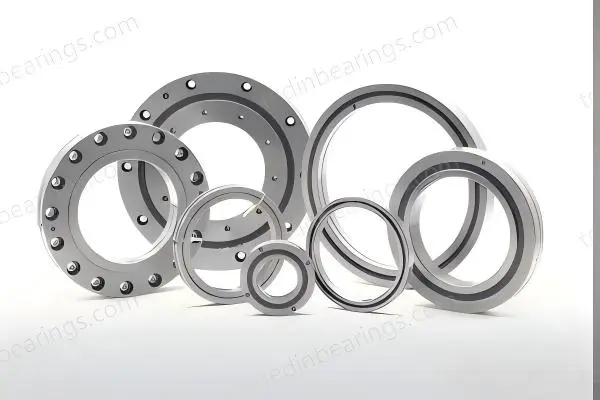

Crossed Roller Bearings
High-rigidity crossed roller bearings for compact rotary systems, robot joints and precision positioning applications.
Angular Contact Ball Bearings
Precision angular contact ball bearings for high-speed spindles, machine tools and demanding rotating equipment.
Double Row Cylindrical Roller Bearings
Double row bearing solutions designed for high radial load capacity, stiffness and stable machine tool performance.
Matched Type Tapered Roller Bearings
Matched tapered roller bearing sets for applications requiring high load capacity, rigidity and accurate preload control.
Need Help Selecting YRT Turntable Bearings?
Send your bearing model, dimensions, load conditions, speed and accuracy requirements. TEDIN can help review your application and recommend a suitable YRT, YRTS or ZKLDF bearing solution.
