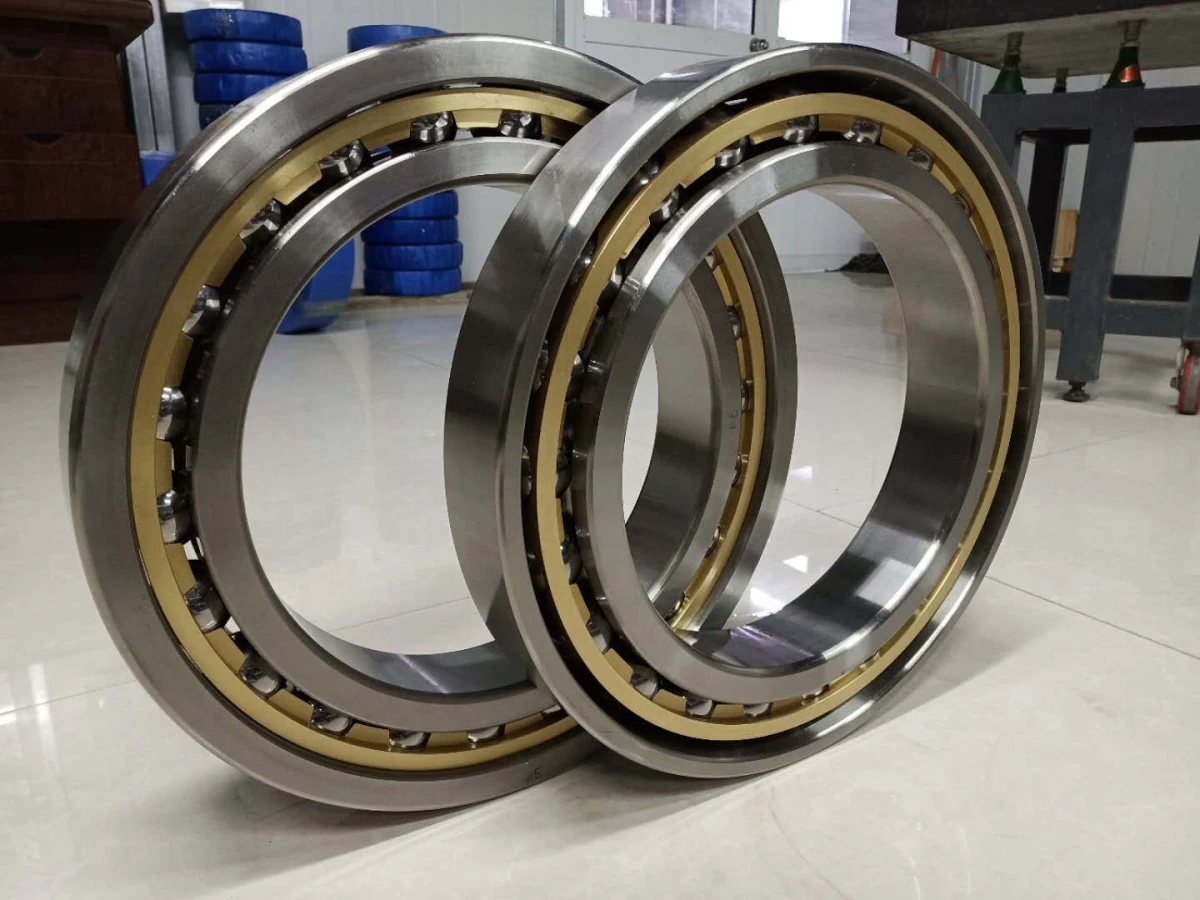

72 Series Angular Contact
Ball Bearings
Medium-series angular contact bearings designed for higher axial load capacity, improved rigidity, and stable operation in heavy-duty precision machinery.
Heavy-duty bearing arrangement
Designed for axial thrust and rigid shaft support.
What Are 72 Series Angular
Contact Ball Bearings?
72 series angular contact ball bearings are medium-series single-row angular contact bearings designed to support combined radial and axial loads where higher rigidity and stronger axial load capacity are required.
Compared with lighter series designs, 72 series bearings provide a larger cross-section and improved load-carrying performance, making them suitable for gearboxes, pumps, compressors, machine tool spindles, and heavy-duty precision machinery. They can be supplied as individual bearings or matched bearing sets in DB, DF, DT, TBT, TFT, and TT arrangements for different stiffness, preload, and thrust load requirements.
Why Choose 72 Series Bearings?
Medium-series bearing design
Larger cross-section than light series bearings for improved load capacity and operational stability.
Higher axial load capacity
Optimized for applications requiring reliable axial thrust support and high running rigidity.
Matched pair arrangements
Available in duplex and triplex configurations including DB, DF, DT, TBT, TFT, and TT.
Suitable for demanding machinery
Commonly used in gearboxes, pumps, compressors, precision equipment, and heavy-duty shaft systems.

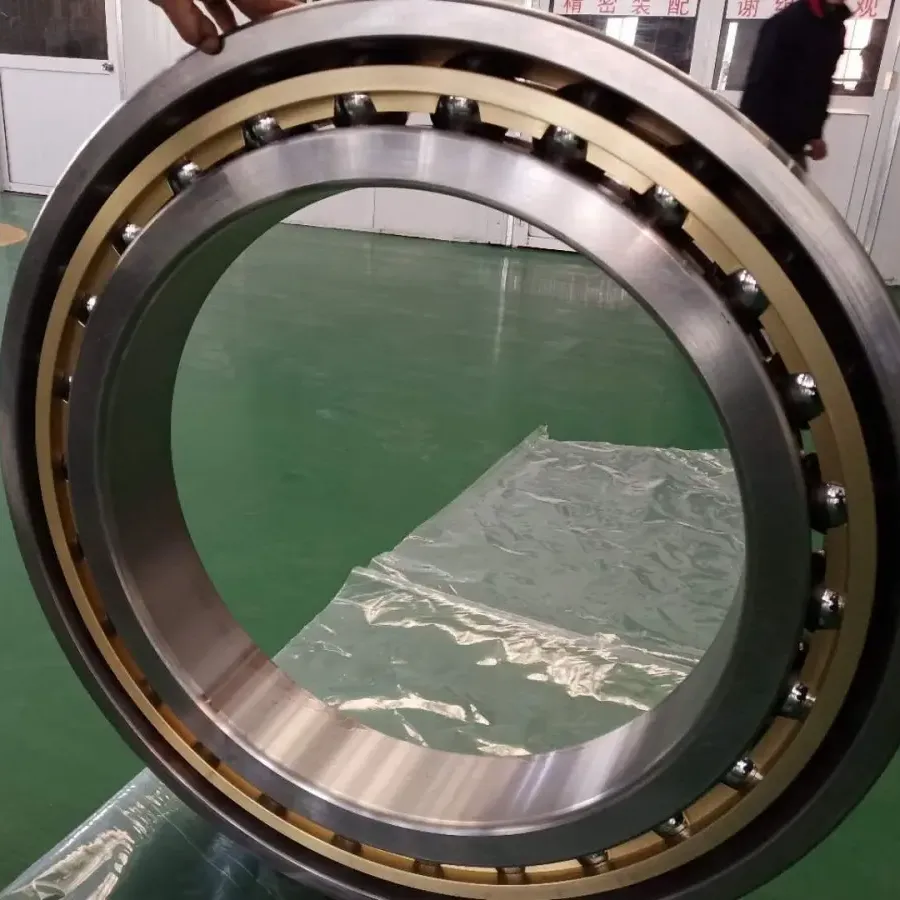

72 Series Bearing Structure and Contact
Angle Options
72 series angular contact ball bearings are engineered with an asymmetric raceway design to support combined radial and axial loads, offering reliable rigidity for medium and heavy-duty rotating equipment.
Designed for Combined Radial and Axial Loads
The internal geometry of 72 series angular contact ball bearings allows the load to be transmitted at a defined contact angle. This makes the bearing suitable for applications where axial thrust, shaft rigidity, and stable high-speed rotation are required.
High-speed operation
Suitable for applications requiring lower axial load capacity and better high-speed performance.
Balanced load support
A common choice for balanced axial load capacity, rigidity, and rotational performance.
Higher axial capacity
Recommended when stronger axial load support and increased thrust capacity are required.
Selection tip: A smaller contact angle is generally preferred for higher speed, while a larger contact angle provides stronger axial load capacity. For matched bearing sets, contact angle, preload, and arrangement should be selected according to operating load direction and shaft rigidity requirements.
Matched Bearing Arrangements for 72 Series Bearings
72 series angular contact ball bearings can be supplied as single bearings or matched bearing sets. Duplex and triplex arrangements help control preload, increase axial rigidity, and support different thrust load directions in precision machinery.
| Arrangement | Set Type | Load Direction | Main Benefit | Typical Applications |
|---|---|---|---|---|
| DB | Back-to-back duplex | Axial loads in both directions | High moment rigidity and stable shaft support | Gearboxes, pumps, precision rotating shafts |
| DF | Face-to-face duplex | Axial loads in both directions | Better tolerance for slight misalignment | General machinery, supported shaft systems |
| DT | Tandem duplex | Axial load mainly in one direction | Higher axial load capacity in a single direction | Thrust-loaded shafts, pumps, compressors |
| TBT | Triplex combination | Combined axial load support | Increased rigidity with higher thrust capacity | Heavy-duty precision machinery and spindle systems |
| TFT | Triplex combination | Combined axial load support | Balanced load distribution and controlled preload | Precision equipment requiring stable rotation |
| TT | Tandem triplex | Axial load mainly in one direction | Maximum axial capacity in one primary direction | High-thrust applications and heavy-duty shaft systems |
Swipe horizontally to view the complete bearing arrangement table.
Preload Control
Matched 72 series bearing sets can be prepared with controlled preload to improve positioning accuracy, running stability, and axial stiffness.
Axial Rigidity
Duplex and triplex angular contact bearing arrangements help increase shaft rigidity under radial and axial combined loads.
Custom Matched Sets
Bearing arrangement, contact angle, cage type, clearance, and preload can be selected according to operating speed and load direction.
Applications of 72 Series Angular Contact Ball Bearings
72 series angular contact ball bearings are used in industrial equipment where stable shaft support, continuous operation, and reliable running performance are required under demanding working conditions.
Gearboxes
Helps improve shaft support in transmission systems exposed to continuous torque, vibration, and changing load conditions.
Industrial Pumps
Supports stable pump shaft rotation where reliability, sealing performance, and continuous operation are important.
Compressors
Suitable for compressor units that require dependable bearing performance during high-duty operation and frequent load changes.

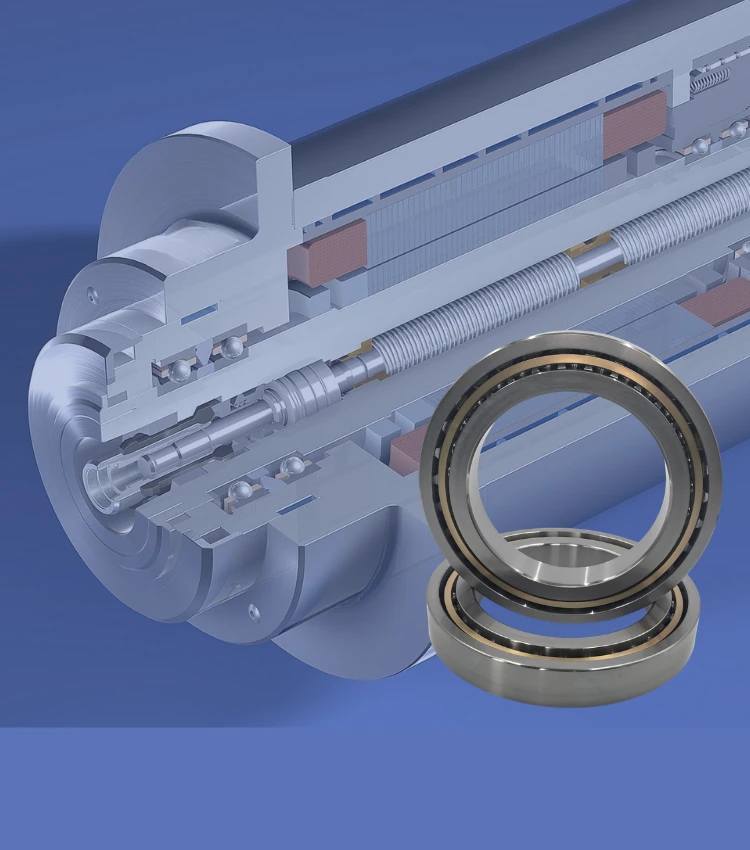

Machine Tool Spindles
Used in spindle systems where smooth rotation, accurate shaft positioning, and consistent machining performance are required.
Heavy-duty Motors
Provides reliable support for motor shafts operating under vibration, continuous running cycles, and industrial working loads.
Precision Rotating Equipment
Applied in equipment where stable rotation, controlled movement, and long-term operational reliability are key requirements.
Match Bearing Selection to Your Equipment Conditions
Different machines place different demands on bearing performance. Sharing your equipment type, operating speed, working environment, maintenance expectations, and replacement requirements helps us recommend a more suitable 72 series bearing solution.
- Suitable for both new equipment projects and replacement requirements
- Application support for rotating machinery, drive systems, and industrial equipment
- Selection guidance based on actual working conditions instead of model number alone

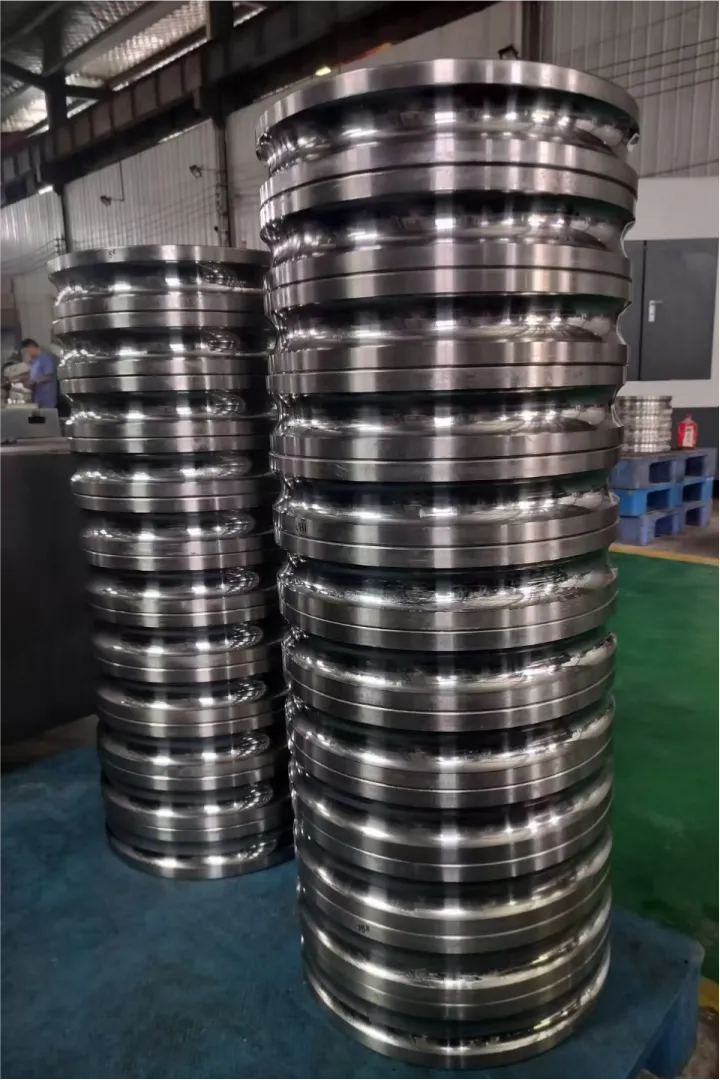

Manufacturing, Inspection and Delivery Control for 72 Series Bearings
Reliable 72 series angular contact ball bearing supply depends on controlled production, consistent inspection, clean handling, and proper export protection before shipment.

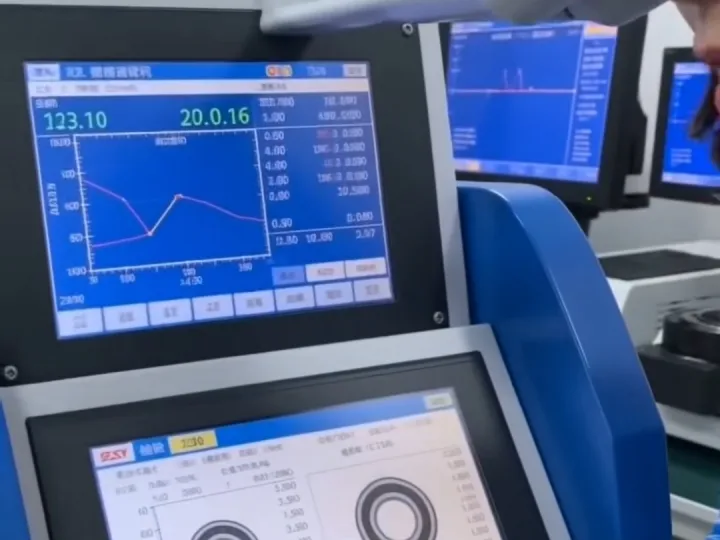

Quality Details That Matter Before Shipment
Beyond production steps, Tedin focuses on the final details that affect fitting, rotation, storage, and international delivery. Each order is reviewed according to product requirements and customer instructions.
- ✓ Dimensional consistency Key dimensions are checked to support correct fitting, mounting stability, and repeatable installation.
- ✓ Rotation smoothness Rotation feel and running condition are reviewed to help identify abnormal noise, roughness, or handling issues.
- ✓ Surface and appearance condition Visible surfaces, edges, marking, and general finish are checked before bearings are prepared for delivery.
- ✓ Order-specific verification Bearing number, quantity, packing requirement, marking request, and customer notes are confirmed before shipment.
- ✓ Protected delivery condition Anti-rust protection and suitable packaging are prepared to reduce storage, handling, and transportation risks.
Material & Heat Treatment
Bearing steel and heat treatment are controlled to support hardness, wear resistance, and long-term operating reliability.
Precision Machining
Raceway and bearing surfaces are processed to support smooth rotation, dimensional accuracy, and stable product consistency.
Assembly & Inspection
Assembly condition, rotation feel, dimensions, marking, and order-related details are reviewed before packing.

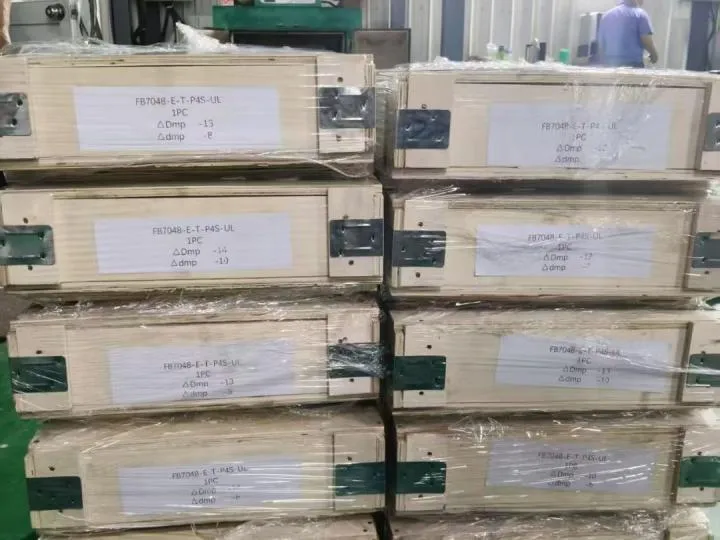

Preservation & Packing
Bearings are preserved, labeled, wrapped, and packed for storage, handling, and international transportation.
Why Source 72 Series Bearings from Tedin?
Tedin supports industrial buyers with stable supply, clear communication, replacement assistance, and export-ready order handling.
Stable Supply
Support regular purchasing, project demand, and repeat orders for industrial bearing users.
Replacement Support
Help confirm suitable replacement options based on bearing codes, drawings, photos, or dimensions.
Flexible Orders
Support sample orders, batch orders, scheduled purchasing, and maintenance requirements.
Export Support
Provide packing, labeling, document, and shipment coordination for international buyers.
Frequently Asked Questions About 72 Series Bearings
Short answers to common purchasing and replacement questions for 72 series angular contact ball bearings.
What does the 72 series bearing number mean?
The 72 series refers to a common angular contact ball bearing series used where combined radial and axial load support is required.
Can Tedin help replace existing bearing models?
Yes. You can send the bearing number, brand, drawing, photo, or dimensions, and we will help check suitable replacement options.
Are 72 series bearings suitable for paired installation?
Yes. Many 72 series bearings can be used in paired arrangements, depending on load direction, shaft support requirements, and installation space.
What information should I provide for quotation?
Please provide the bearing number, quantity, expected delivery time, existing brand or replacement code, and any packing or shipping requirements.
Do you support export packing and shipment documents?
Yes. Tedin can support product labeling, packing details, shipment coordination, and common export documents for international bearing orders.

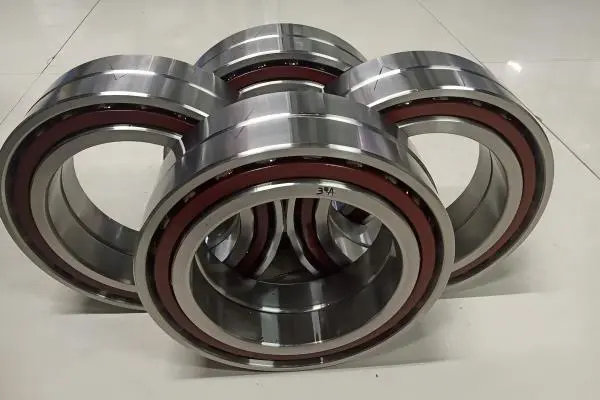

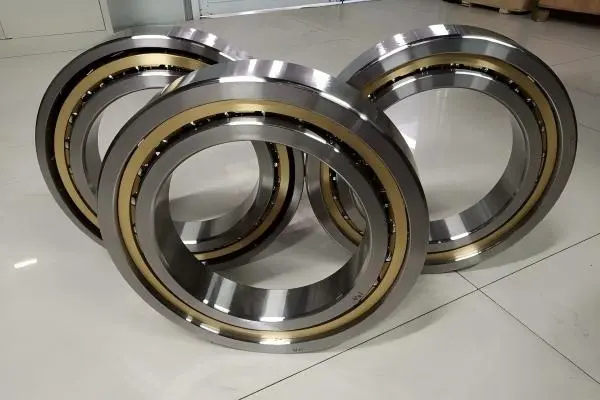

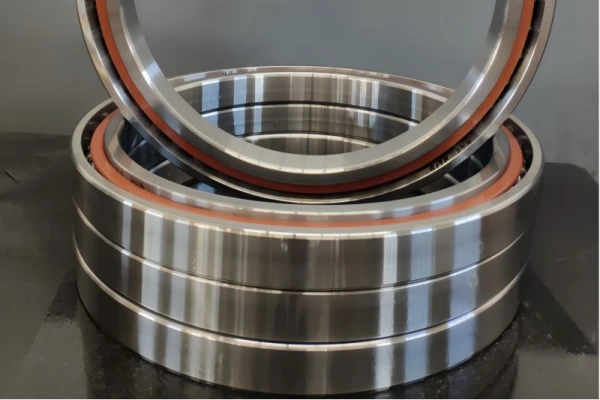

Related Angular Contact Ball Bearing Series
