Bearing Case Studies
Explore TEDIN bearing solutions for machine tools, rolling mills, mining equipment, gearboxes, cranes and other heavy-duty industrial applications.
- Custom Bearing Solutions
- Imported Bearing Replacement
- Application-Based Technical Review
Bearing Cases From Real Industrial Applications
Many bearing projects start with a model number, a drawing, a sample, or an imported bearing that is hard to source. TEDIN reviews the dimensions, structure, precision grade and working conditions before moving forward with manufacturing or replacement suggestions.
Model & Drawing Check
Customers often send us bearing numbers, drawings or photos. We check the main dimensions, internal structure and whether the bearing can be produced or replaced.
Non-Standard Bearings
Some machines use special sizes or older bearing designs. In these cases, we review the available information and confirm the possible manufacturing route.
Replacement Review
For imported or discontinued bearings, we compare the key dimensions, clearance, load direction and application details before suggesting a replacement option.
Bearing Replacement Cases From Industrial Sites
Selected case studies from rolling mill maintenance, crusher repair, precision machine tools and other demanding bearing replacement projects.
KOCKS-Type Rod Mill Stand Bearing Replacement Case
A steel mill needed a reliable replacement bearing solution for a KOCKS-type rod mill stand housing. TEDIN supplied a custom bearing set based on the equipment structure, fitting dimensions and working conditions of the rod mill stand.
This case shows TEDIN’s work in rolling mill maintenance projects where standard bearing references are not enough and the replacement set needs to match the existing stand arrangement.
View Full Case Study

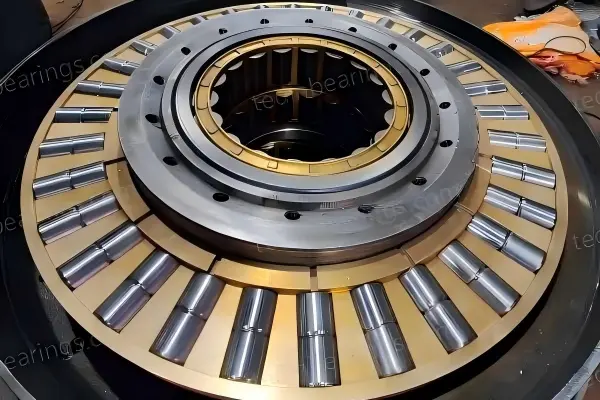

Cedarapids RC54 Cone Crusher Bearing Replacement Case
A customer needed replacement main bearings for a Cedarapids RC54 cone crusher repair. TEDIN checked the bearing references, confirmed the crusher model information and prepared the required bearings for shipment.
This case was mainly about reducing replacement risk during an urgent repair window: the bearing references, crusher model and site information were checked before supply.
View Full Case Study

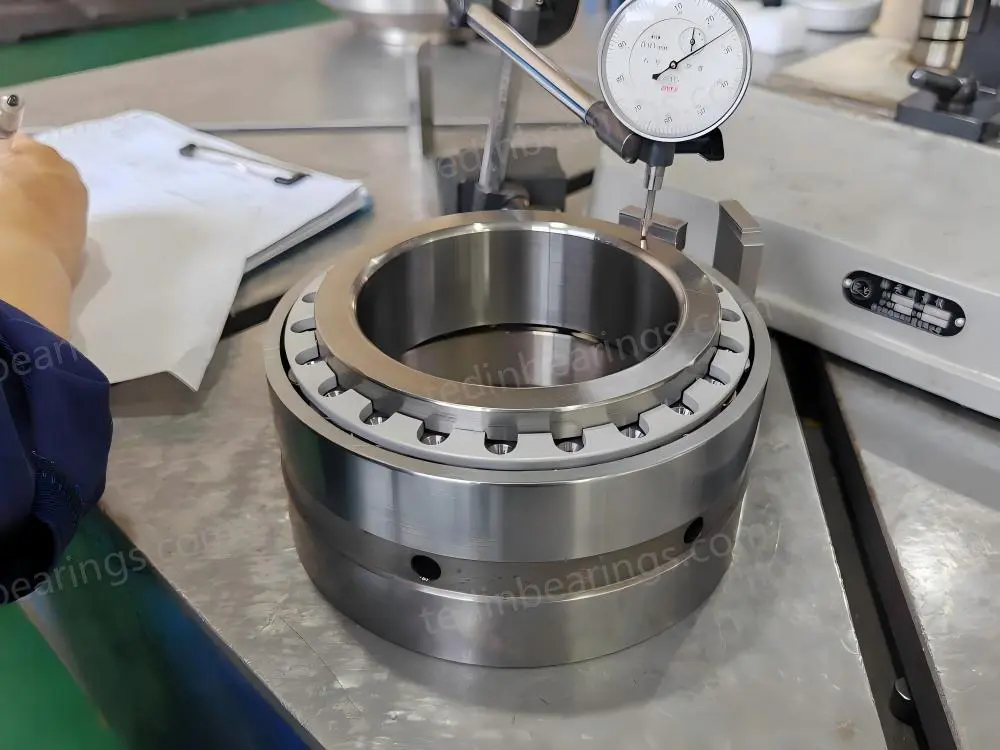

Compatible Gamet-Type Bearing Replacement for Heavy-Duty Roll Grinding Machine
A heavy-duty roll grinding machine could not reach the expected running accuracy after final assembly, even when imported bearings of the same specification were tested. TEDIN reviewed the bearing, spindle and assembly condition as one working system.
This case shows how TEDIN supported an imported precision bearing replacement project through structure review, raceway and roller geometry control, clearance matching and final machine verification.
View Full Case Study

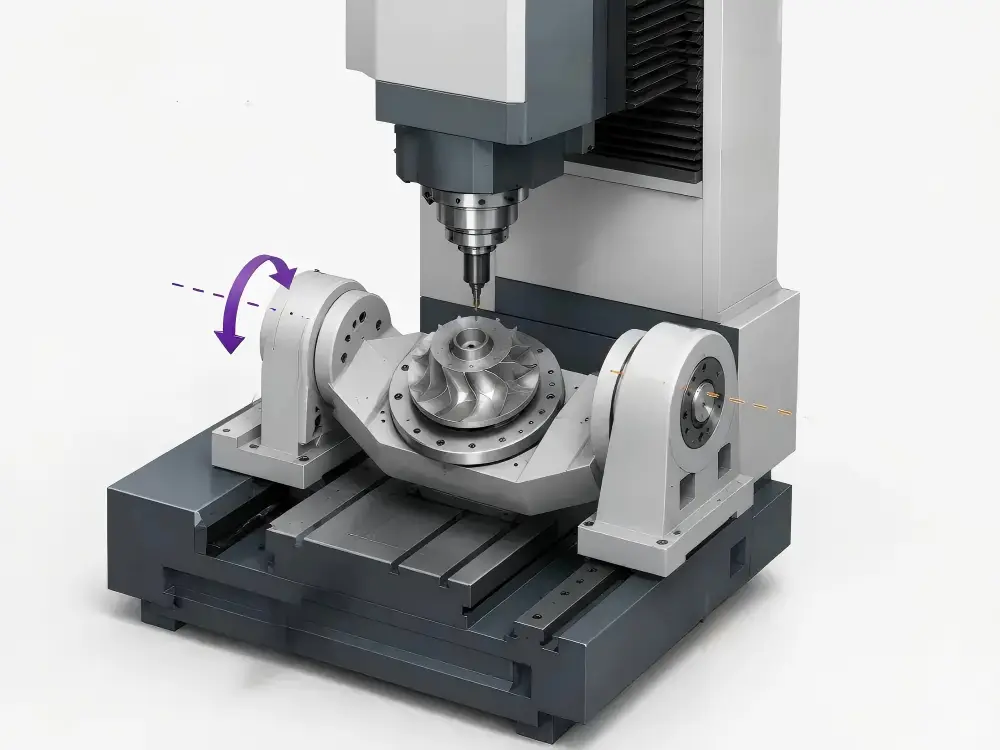

B-Axis Rotary Table Bearing Replacement Case
A high-end five-axis CNC machine tool manufacturer needed a matched bearing solution for the rotary B-axis. TEDIN developed a paired tapered roller bearing set focused on rigidity, smooth motion and stable positioning accuracy.
This case shows how TEDIN supported a precision rotary table bearing replacement project through matched-set configuration, internal structure optimization, precision grinding and final set verification.
View Full Case StudyHow We Review a Bearing Case
Before suggesting a replacement or preparing production, TEDIN checks the bearing information, equipment condition and application details provided by the customer.
Receive Bearing Information
Customers usually send a bearing model, drawing, photos, samples or failed bearing information for an initial review.
Check Dimensions & Structure
TEDIN reviews the main dimensions, internal structure, clearance, precision grade and matching arrangement when the information is available.
Review Working Conditions
Load direction, speed, lubrication, installation position and failure record are checked to understand the actual operating condition.
Confirm Replacement Route
Based on the review, TEDIN confirms whether the bearing can be supplied from stock, replaced by an equivalent option or manufactured as a custom bearing.
Have a Bearing Replacement Case to Review?
Send us the bearing model, drawing, photos, sample details or equipment information. TEDIN can review the key dimensions and application details before suggesting a replacement or custom manufacturing route.
Helpful information to send
- Bearing model or drawing
- Photos of the failed or existing bearing
- Equipment model or mounting position
- Working condition and replacement record
If the model number is unclear, photos or sample details can also help with the initial review.
