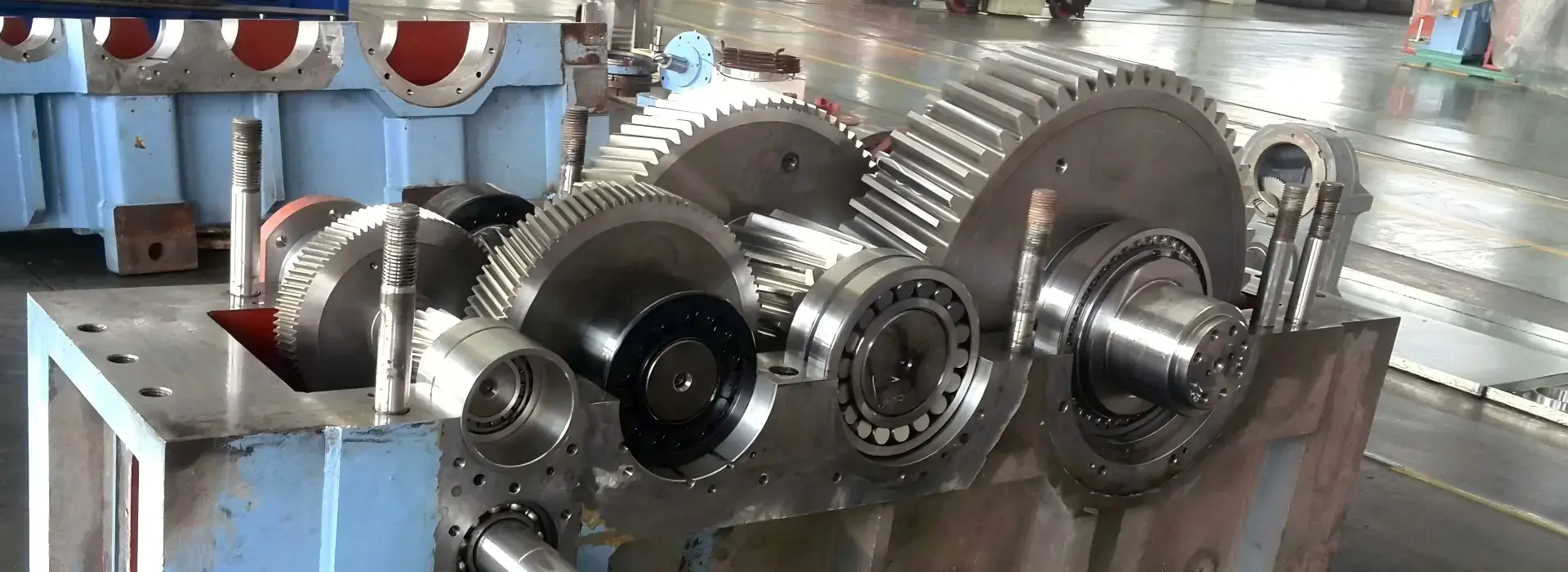

Gearbox Bearings for Industrial Gearboxes
TEDIN supplies bearings for gearboxes used in mining, cement, metallurgy, marine, cranes, wind power and heavy machinery. Bearing types include tapered roller, cylindrical roller, spherical roller, angular contact and thrust bearing solutions.
Why Bearing Selection Matters in Gearboxes
Gearbox bearings do more than support rotating shafts. They help control shaft position, gear contact, vibration and operating temperature. A wrong bearing arrangement can shorten service life long before the gears themselves fail.
Combined Load Direction
Helical, bevel and worm gears can generate radial and axial forces at the same time. Bearings must be selected according to actual load direction, not only shaft diameter.
Shaft Position Control
Bearing layout affects axial location and shaft alignment. Poor positioning may change the gear contact pattern and increase noise, vibration or uneven tooth wear.
Speed and Heat
Input shafts normally run at higher speed. Bearing clearance, cage structure and lubrication method need to match the speed range to keep temperature under control.
Bearing Types Used in Industrial Gearboxes
Industrial gearboxes use different bearing types according to shaft speed, load direction, axial positioning and available mounting space. The table below gives a practical starting point for gearbox bearing selection.
| Bearing Type | Typical Gearbox Position | Main Function |
|---|---|---|
| Tapered Roller Bearings | Output shaft, pinion shaft, bevel gear shaft | Carry combined radial and axial loads where gear forces act in more than one direction. |
| Cylindrical Roller Bearings | High-load radial shaft positions, floating shaft side | Support heavy radial loads and allow axial displacement in selected bearing arrangements. |
| Spherical Roller Bearings | Heavy-duty gearboxes with shaft deflection or housing deformation | Handle high radial loads and tolerate a certain level of misalignment. |
| Angular Contact Ball Bearings | High-speed input shaft, precision shaft support | Provide axial location and running accuracy where speed and heat generation are key factors. |
| Thrust Bearings | Vertical gearboxes, worm gearboxes, thrust positions | Carry axial force in one direction or both directions depending on gearbox structure. |
| Custom Gearbox Bearings | Non-standard reducers, imported gearboxes, large transmission systems | Match special dimensions, clearance, cage structure or replacement requirements. |
Final bearing selection should be checked against load data, speed, lubrication method, shaft arrangement, mounting space and operating temperature.
Gearbox Tapered Roller Bearings
Tapered roller bearings are often used where radial load and axial load act together, especially around pinion shafts, bevel gear shafts and output shaft supports.
Gearbox Cylindrical Roller Bearings
Cylindrical roller bearings are selected for high radial load positions. NU, N, NJ and NUP designs can be reviewed according to the fixed or floating side arrangement.
Gearbox Spherical Roller Bearings
Spherical roller bearings are used where shaft deflection, housing deformation or installation deviation may affect load distribution across the raceway.
Operating Conditions We Review for Gearbox Bearings
Reliable gearbox bearing selection depends on more than the bearing code. TEDIN reviews operating data, shaft arrangement and replacement dimensions to match bearings with the actual working conditions inside the gearbox.
Load Direction and Load Level
Gearbox bearings may carry radial load, axial load or combined load depending on the gear type. Shock load and peak torque should also be considered in crushers, mills and heavy transmission systems.
Shaft Speed and Duty Cycle
Input shafts usually run faster than output shafts. Continuous operation, frequent starts, reversing movement and intermittent duty can all affect bearing clearance, cage design and heat generation.
Lubrication Method
Oil bath, splash lubrication, circulating oil and grease lubrication create different operating conditions. Lubrication method influences temperature control, wear protection and bearing service life.
Operating Temperature
Temperature affects bearing clearance, lubricant viscosity and material stability. For high-speed or enclosed gearboxes, heat generation should be reviewed before final bearing confirmation.
Mounting Space and Shaft Fit
Replacement gearbox bearings must match shaft diameter, housing bore, bearing width and shoulder dimensions. Bearing seat condition and fit tolerance should also be checked.
Gearbox Working Environment
Mining, cement, steel, crane and conveyor gearboxes may face dust, water, vibration or heavy shock load. These conditions influence bearing sealing, internal clearance and material requirements.
Gearbox Bearings for Heavy-Duty Applications
Gearbox bearings are widely used in reducers, transmission systems and heavy-duty equipment. Different applications create different load patterns, speed conditions and reliability requirements for the bearing arrangement.
Crusher Gearboxes
Crusher gearboxes often face sudden impact load, vibration and high peak torque. Bearings should be checked for load rating, internal clearance and fatigue resistance.
Rolling Mill Gearboxes
Rolling mill gearboxes operate under heavy radial load and continuous production cycles. Bearing stability, lubrication and heat control are important for reducing unplanned downtime.
Mining Conveyor Gearboxes
Conveyor gearboxes require reliable bearing performance during long operating hours. Dust, moisture, belt tension and misalignment should be considered during bearing selection.
Crane Gearboxes
Crane and hoist gearboxes often work with repeated starts, stops and reversing movement. Bearings must handle changing load direction and intermittent shock load.
Cement Gearboxes
Cement plant gearboxes are exposed to dust, heavy load and elevated temperature. Bearing clearance, lubrication and sealing conditions should be reviewed for stable operation.
Industrial Reducers
Large industrial reducers used in power transmission systems may require standard or custom gearbox bearings depending on shaft size, housing structure and replacement dimensions.

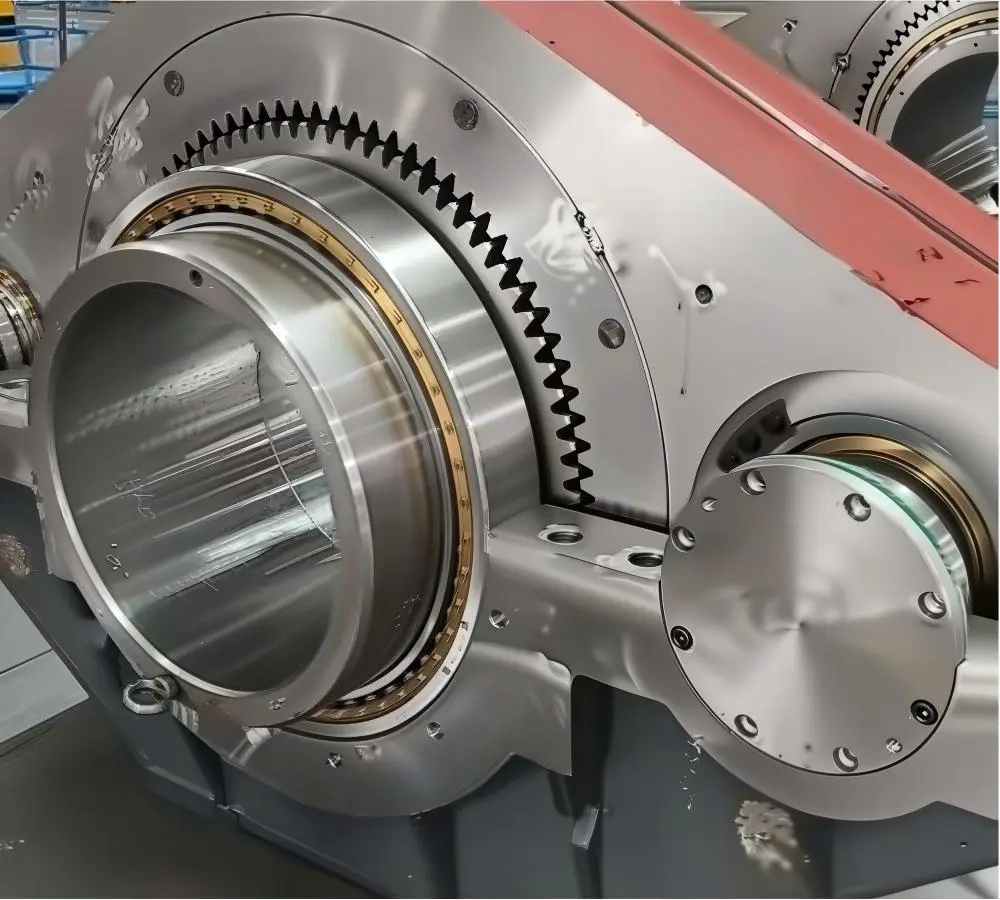

Replacement and Custom Gearbox Bearings
TEDIN supplies standard replacement bearings and custom gearbox bearings for industrial reducers, imported gearboxes and heavy-duty transmission systems. Bearing codes, drawings and measured dimensions can be reviewed to confirm suitable options.
From Standard Replacement to Drawing-Based Production
Gearbox bearing replacement may involve standard bearing codes, imported brand interchange or non-standard dimensions. TEDIN reviews the application data before confirming suitable bearing types and specifications.

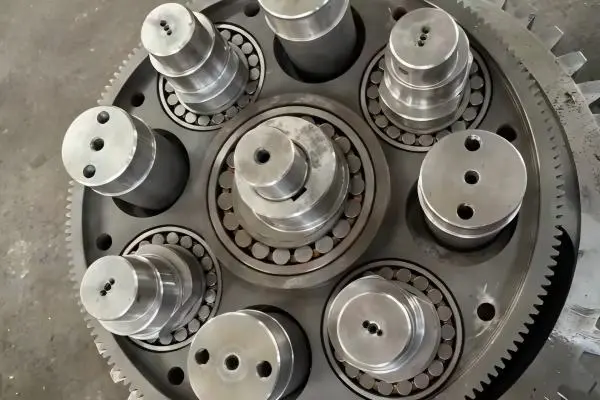

- Standard gearbox bearing replacement
- Imported bearing code interchange

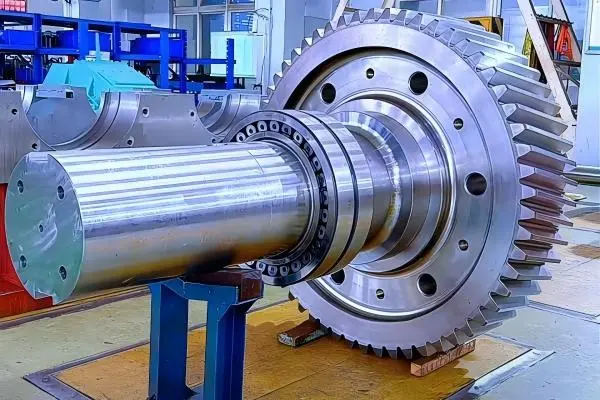

- Custom dimensions for non-standard reducers

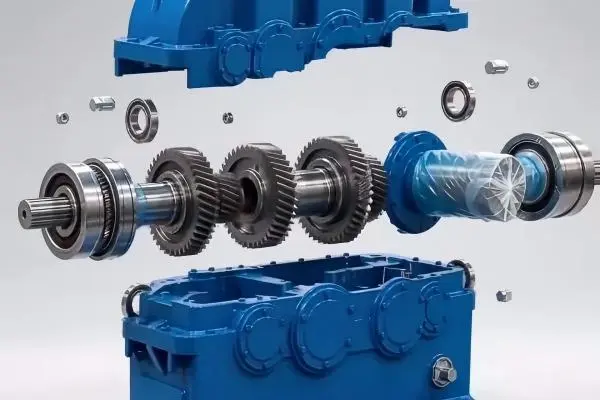

- Drawing-based production and technical review
- Clearance, cage, material and heat treatment options
For faster confirmation, send the bearing code, old bearing photos, gearbox model, shaft drawing or measured dimensions.
How We Confirm Gearbox Bearing Requirements
TEDIN reviews bearing codes, dimensions, drawings and working conditions to help confirm suitable gearbox bearing options quickly and accurately.
Check Bearing Information
Send the bearing code, old bearing photos, original brand or gearbox model for initial identification.
Confirm Main Dimensions
Inner diameter, outer diameter, width, shaft diameter and housing bore are checked against the mounting space.
Review Working Conditions
Load direction, speed, lubrication, temperature and shock load help confirm the suitable bearing structure.
Confirm Supply Option
TEDIN can suggest standard replacement, interchange models or custom gearbox bearings based on the review.
Need help confirming a gearbox bearing?
Send the bearing code, photos, dimensions or gearbox drawing. TEDIN will help review the information and suggest suitable options.
FAQ About Gearbox Bearings
Below are common questions about gearbox bearing selection, replacement and custom supply for industrial reducers and heavy-duty transmission systems.
What bearings are commonly used in industrial gearboxes?
Common gearbox bearings include tapered roller bearings, cylindrical roller bearings, spherical roller bearings, angular contact ball bearings and thrust bearings. The final choice depends on load direction, speed, shaft arrangement and available mounting space.
Can TEDIN supply replacement gearbox bearings by bearing code?
Yes. If you provide the bearing code, original brand or gearbox model, TEDIN can review the size and application requirements to confirm suitable replacement or interchange options.
What information is needed to confirm a gearbox bearing?
Useful information includes bearing code, old bearing photos, inner diameter, outer diameter, width, shaft diameter, housing bore, load direction, speed, lubrication method and gearbox drawing if available.
Can TEDIN produce custom gearbox bearings?
Yes. For non-standard reducers, older equipment or special mounting dimensions, TEDIN can review drawings or measured dimensions for custom gearbox bearing production.
Which bearing is better for high axial load in gearboxes?
High axial load may require tapered roller bearings, angular contact ball bearings or thrust bearings depending on the gearbox design. Load direction, gear type and shaft layout should be reviewed before selection.
Can gearbox bearings be replaced with another brand?
In many cases, yes. Brand interchange can be reviewed by comparing bearing dimensions, load ratings, clearance, cage design and working conditions. TEDIN can help check suitable equivalent options.
