Machine Tool Bearings
for CNC Spindles and Rotary Tables
Precision bearing solutions for machine tool builders and maintenance teams, with P5, P4 and P2 options selected to suit speed, load and running accuracy requirements.

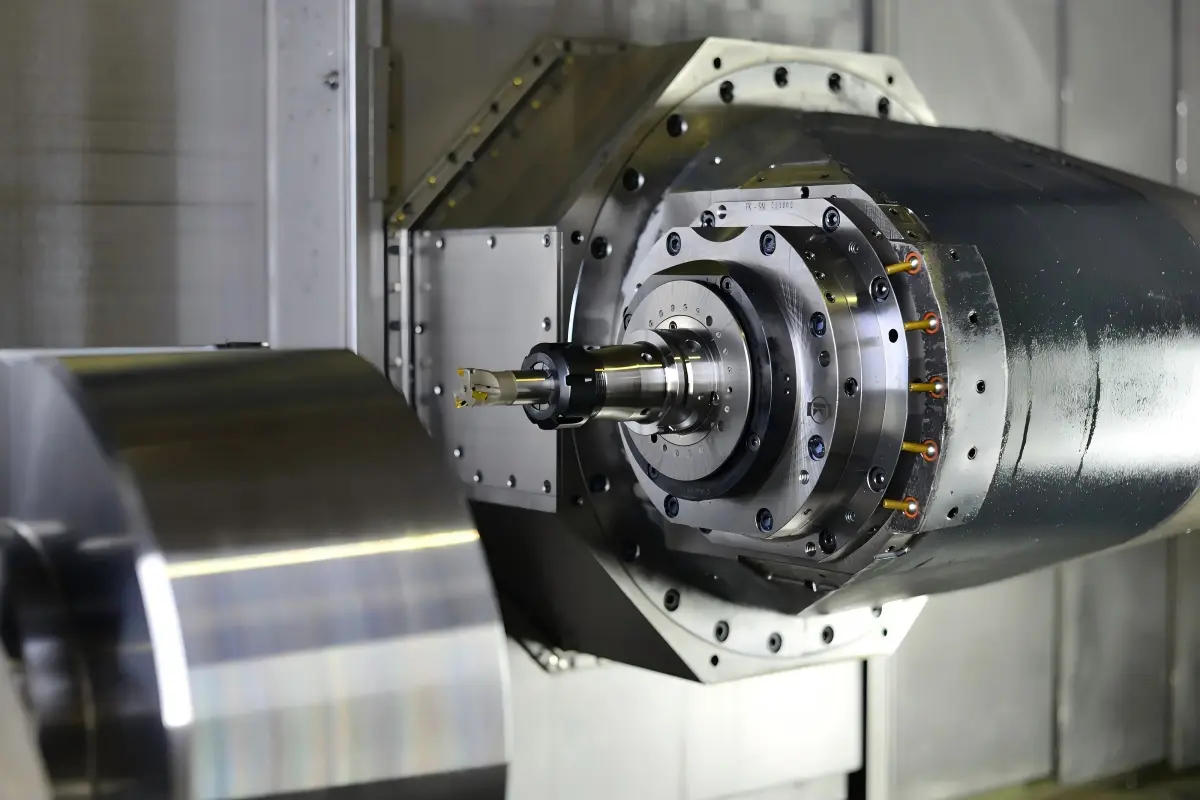

Application-Based Selection for Precision Machine Tool Bearings
Machine tool bearing selection starts with the complete assembly—not precision grade alone. TEDIN reviews operating speed, radial and axial loads, rigidity, preload, lubrication and mounting conditions to help identify suitable bearing types and arrangements. Explore our spindle bearing solutions and rotary table bearing solutions for position-specific selection considerations.
Operating Requirements
Review speed, radial and axial loads, duty cycle, rigidity and required running accuracy.
Bearing Configuration
Evaluate bearing type, arrangement, preload and lubrication in relation to loads and thermal behavior.
Mounting & Matching Requirements
Review shaft and housing fits, mounting interfaces, bearing orientation and matched-set requirements.
OEM Supply Support
Support sample evaluation and production supply based on agreed bearing specifications and inspection requirements.
Machine Tool Bearing Selection by Application
Compare common bearing options for key machine tool positions. Final selection depends on speed, loads, running accuracy, preload and mounting conditions.
| Application | Typical Use | Common Bearing Options | Selection Priorities |
|---|---|---|---|
| Machine Tool Spindles | CNC machining centers, turning centers, milling machines and grinding spindles. |
Angular Contact Ball Bearings
Cylindrical Roller Bearings Gamet-Type Precision Tapered Roller Bearings | Speed capability, running accuracy, rigidity and preload control. |
| Rotary Tables & Indexing Systems | CNC rotary tables, multi-axis rotary units and indexing heads. |
Crossed Roller Bearings
YRT Turntable Bearings | Axial and radial rigidity, overturning moments, rotational accuracy and mounting space. |
| Gearboxes & Drive Shafts | Machine tool gear shafts and transmission units. |
Cylindrical Roller Bearings
Tapered Roller Bearings | Radial and axial loads, shaft support arrangement, lubrication and service life. |
| Ball Screw & Feed Drive Supports | CNC feed axes, ball screw end supports and linear positioning systems. |
Ball Screw Support Bearings Application-Specific Matched Angular Contact Sets | Axial stiffness, preload, positioning repeatability and support arrangement. |
Need help selecting machine tool bearings?
Send your full bearing designation, drawing or operating conditions for application review.
Precision Bearing Types for Machine Tool Applications
TEDIN supplies precision bearings for spindles, rotary tables, gearboxes, ball screw supports and CNC positioning systems.

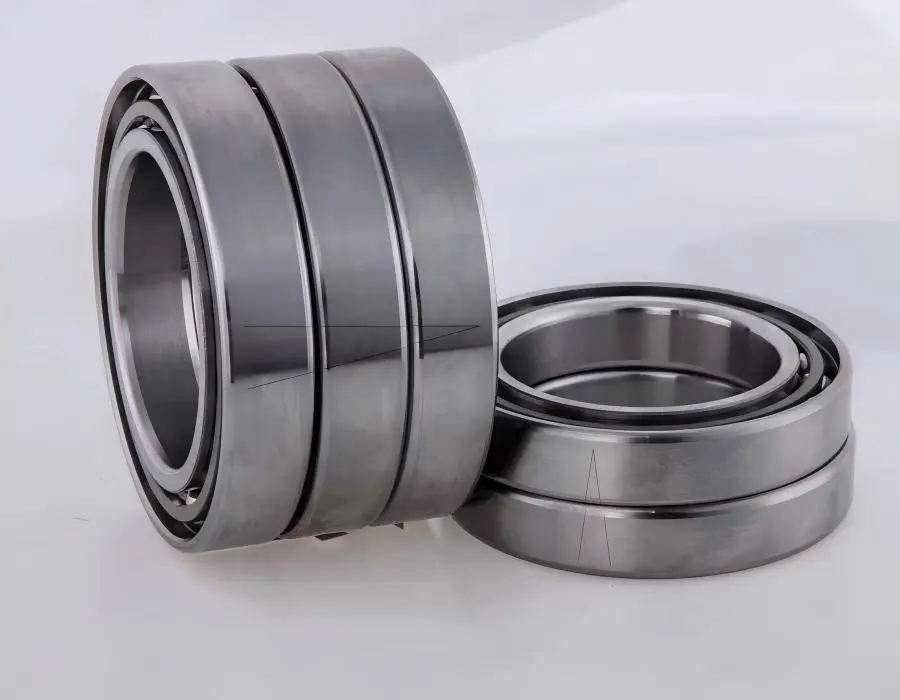

Angular Contact Ball Bearings
High-speed spindle bearings for CNC machines, machining centers and precision spindle assemblies.
View Angular Contact Ball Bearings →

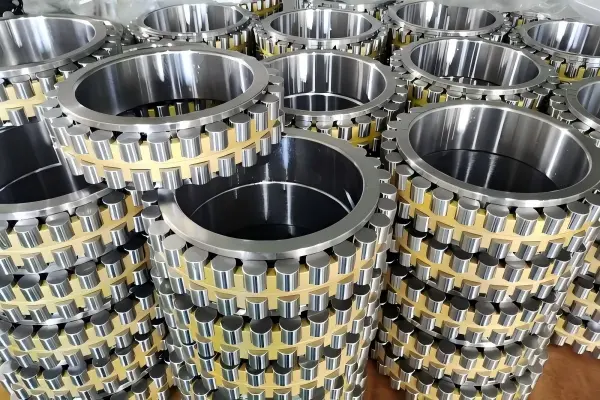

Cylindrical Roller Bearings
High-rigidity bearings for machine tool spindles, gearboxes and heavy radial load positions.
View Cylindrical Roller Bearings →

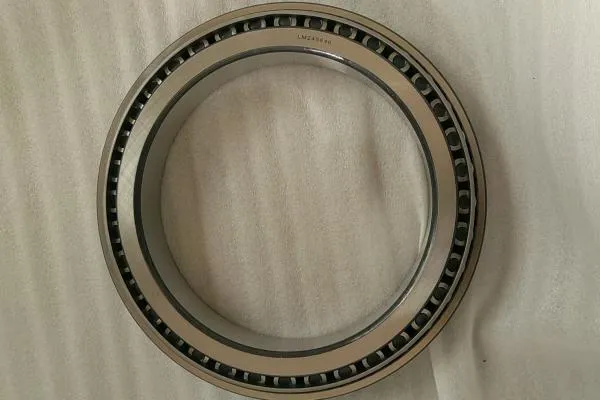

Tapered Roller Bearings
Bearing support for gearboxes and drive shafts under combined radial and axial loads.
View Tapered Roller Bearings →

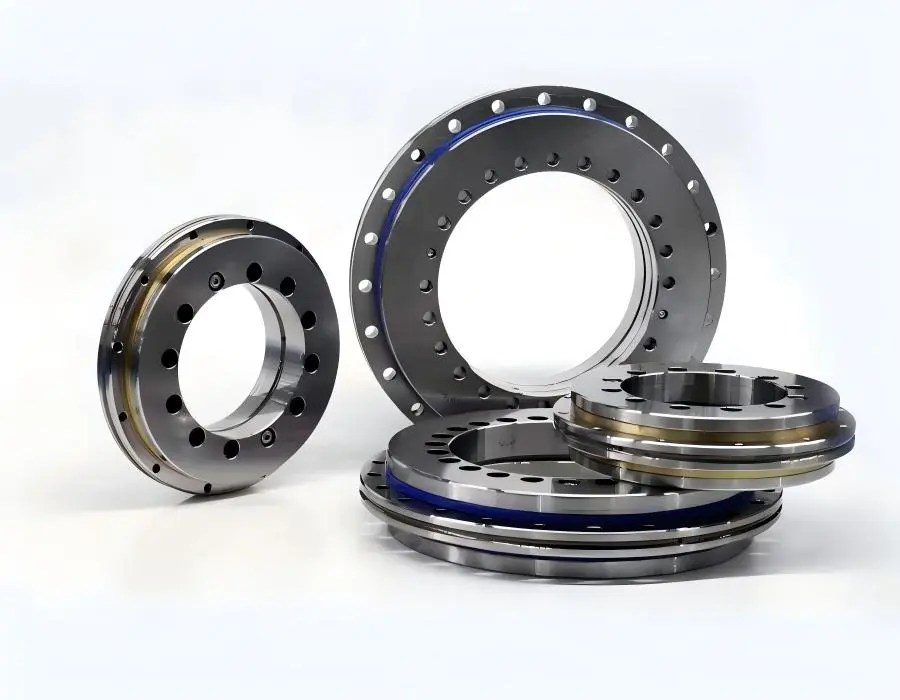

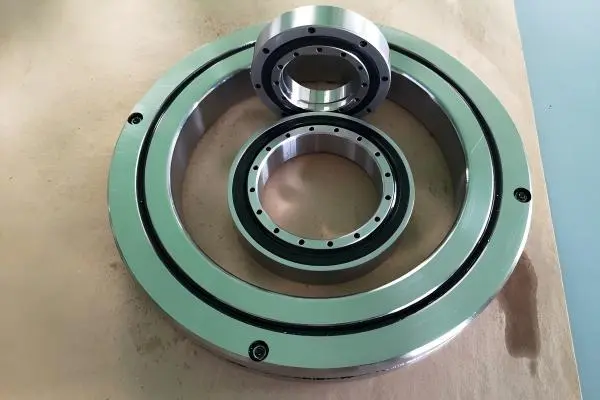

Crossed Roller Bearings
Compact, high-rigidity bearings for rotary tables, indexing units and precision positioning systems.
View Crossed Roller Bearings →

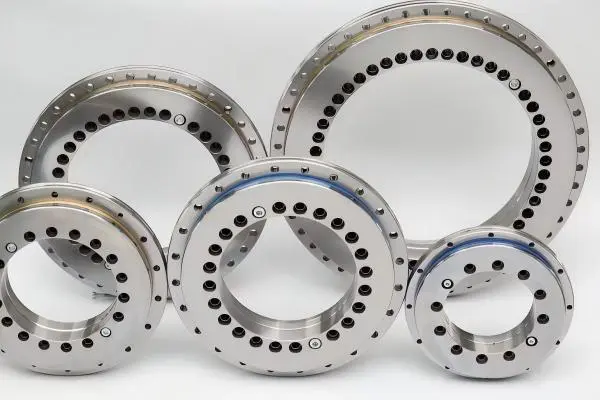

Turntable Bearings
Heavy-duty bearing solutions for large rotary tables, indexing mechanisms and positioning systems.
View Turntable Bearings →
Ball Screw Support Bearings
High-rigidity support bearings for CNC feed drives, ball screws and precision positioning axes.
Browse Bearing Products →Machine Tool Bearing Application Cases
Explore selected TEDIN bearing projects for CNC rotary tables, grinding machine spindles and pipe threading lathes. Each case highlights the application, bearing configuration and project requirements.
Matched Bearing Set for a Five-Axis CNC B-Axis
A matched tapered roller bearing set for a CNC rotary B-axis, with project requirements focused on rigidity and positioning accuracy under indexing and cutting loads.
View B-Axis Bearing Case →
Precision Tapered Roller Bearings for a Roll Grinding Spindle
Gamet-type precision tapered roller bearings for a heavy-duty roll grinding spindle, with a focus on raceway control, matched bearing performance and running accuracy.
View Grinding Spindle Case →
Custom Angular Contact Bearing for a Pipe Threading Lathe
A custom 540805A angular contact ball bearing for OCTG pipe threading, designed around the required dimensions, locating flange structure and runout limits.
View 540805A Bearing Case →Replacing an Existing Machine Tool Bearing?
Explore the information and compatibility checks needed for a replacement review based on an original model, drawing or sample.
Choose the Right Precision Grade for Machine Tool Bearings
Compare P5, P4 and P2 precision grades, or specify custom tolerances to match your spindle and machining accuracy requirements.
| Precision Grade | Approx. ABEC Equivalent | Typical Applications | Selection Focus |
|---|---|---|---|
| P5 | ABEC 5 | CNC lathes, milling machines and general spindle systems. | Balance bearing accuracy, operating requirements and cost. |
| P4 | ABEC 7 | Precision machining centers, high-speed spindles and grinding machines. | Tighter dimensional and running accuracy tolerances. |
| P2 | ABEC 9 | Ultra-precision grinding spindles and accuracy-critical machining systems. | Very low bearing runout and stringent rotational accuracy requirements. |
| Better than P2 | No standard equivalent | Special spindle units and application-specific OEM designs. | Agreed dimensional or runout limits for selected bearing characteristics. |
ISO / DIN and ABEC grades are approximate comparisons, not interchangeable specifications. Custom tolerances are agreed requirements, not a separate ISO precision grade.

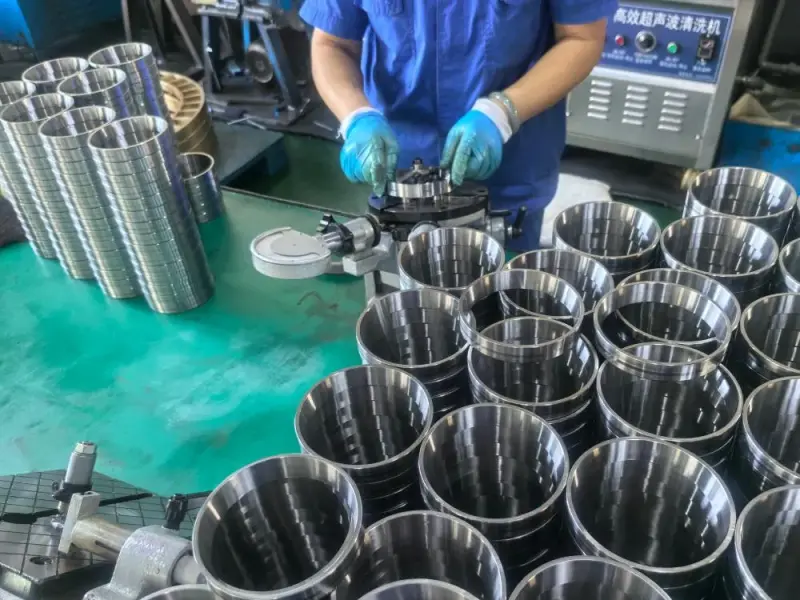

Precision Testing for Machine Tool Bearings
TEDIN inspects machine tool bearings for dimensional accuracy, rotational performance and matched-set consistency before delivery.
- P5, P4 and P2 precision grade inspection

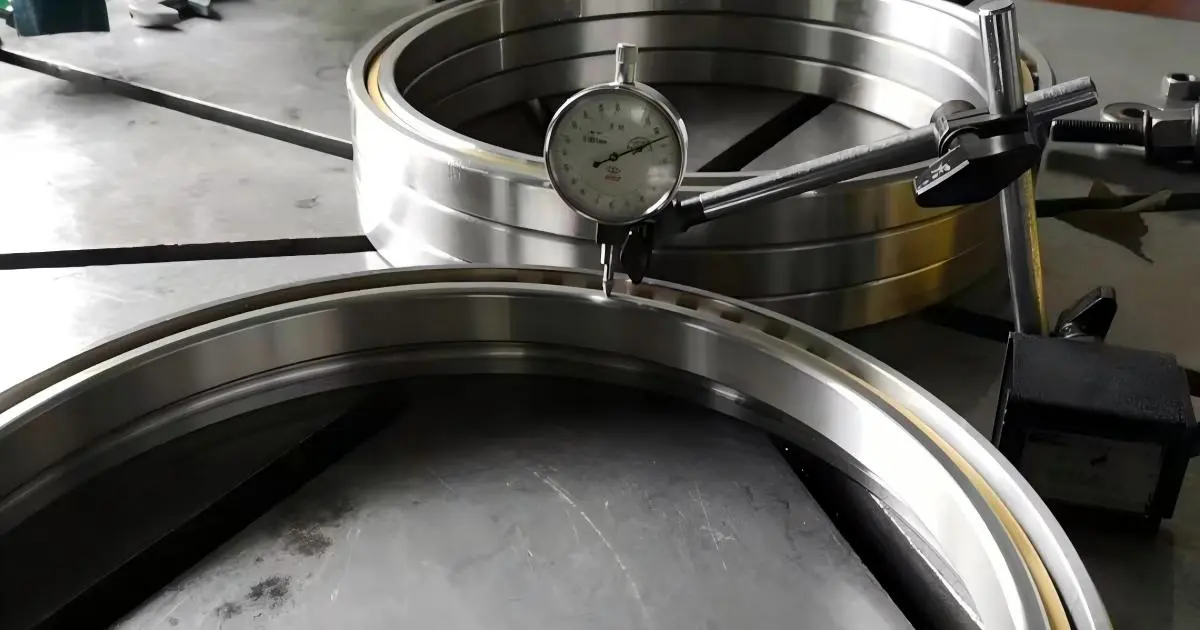

- Runout and rotational accuracy checks
- Vibration and noise testing
- Preload and matched-set consistency checks
From Specification Approval to Production Supply
TEDIN supports machine tool OEM projects through agreed bearing specifications, sample evaluation and production inspection requirements—from prototype builds to repeat orders.
Specification Approval
Confirm drawings, critical tolerances, matched-set requirements and acceptance criteria before manufacturing.
Sample Evaluation
Supply samples or trial sets for customer assembly checks and operating evaluation before production approval.
Inspection & Documentation
Agree inspection items and documentation needs, with checks against the approved bearing specifications.
Production & Repeat Orders
Coordinate order quantities, delivery schedules and packaging, with specification confirmation for repeat supply.
Technical Guides for Machine Tool Bearings
Explore practical guidance on precision grades, spindle preload, lubrication and failure analysis to support bearing selection and maintenance decisions.
Machine Tool Bearing Precision Grades: P5 vs. P4 vs. P2
Understand what precision grades control and why size and grade alone do not confirm replacement compatibility.

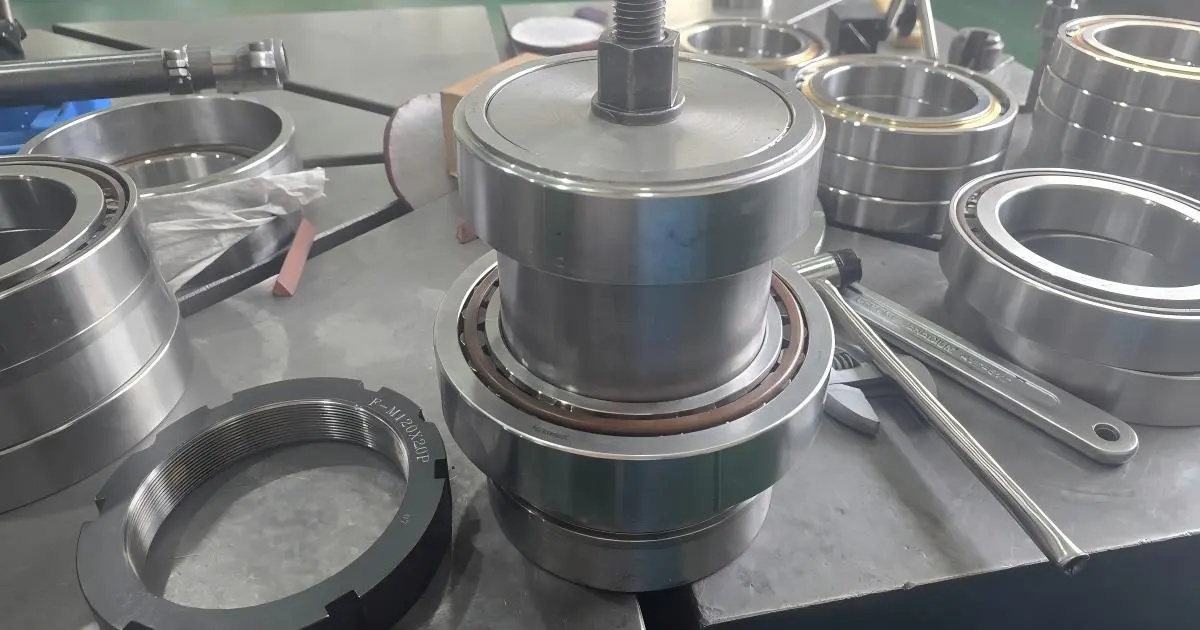

CNC Spindle Bearing Preload: How to Set and Check It
Compare fixed-position and constant-pressure preload, including how thermal conditions affect spindle behavior.

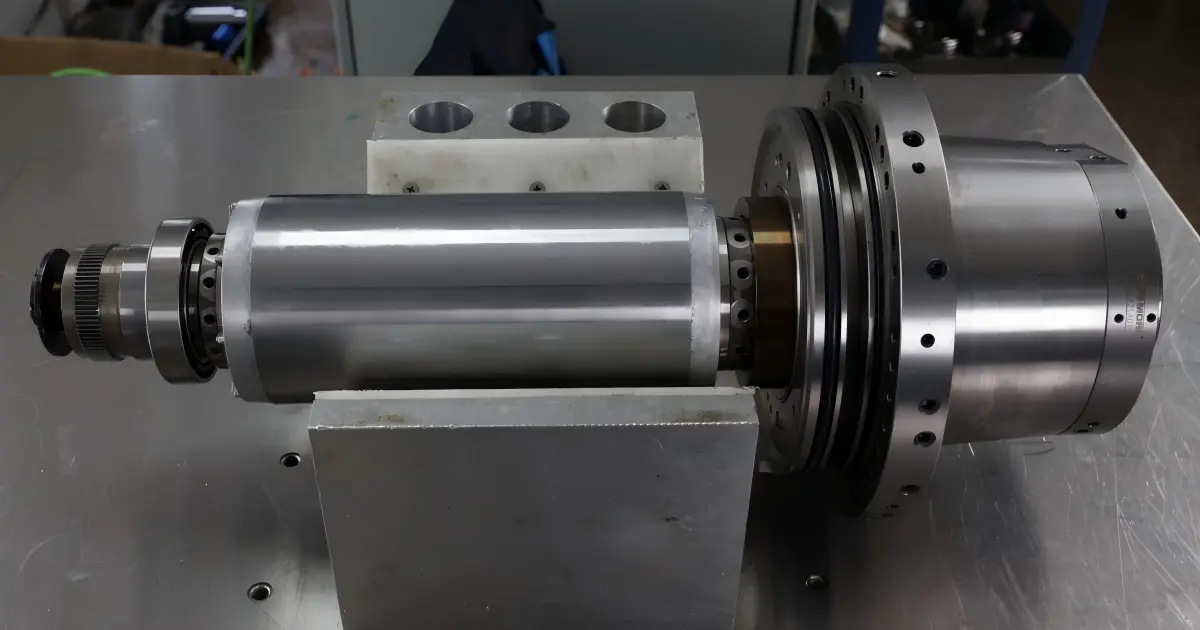

Machine Tool Spindle Bearing Lubrication: Grease or Oil-Air?
Compare grease and oil-air lubrication, with practical checks for operating speed, lubricant delivery and maintenance.

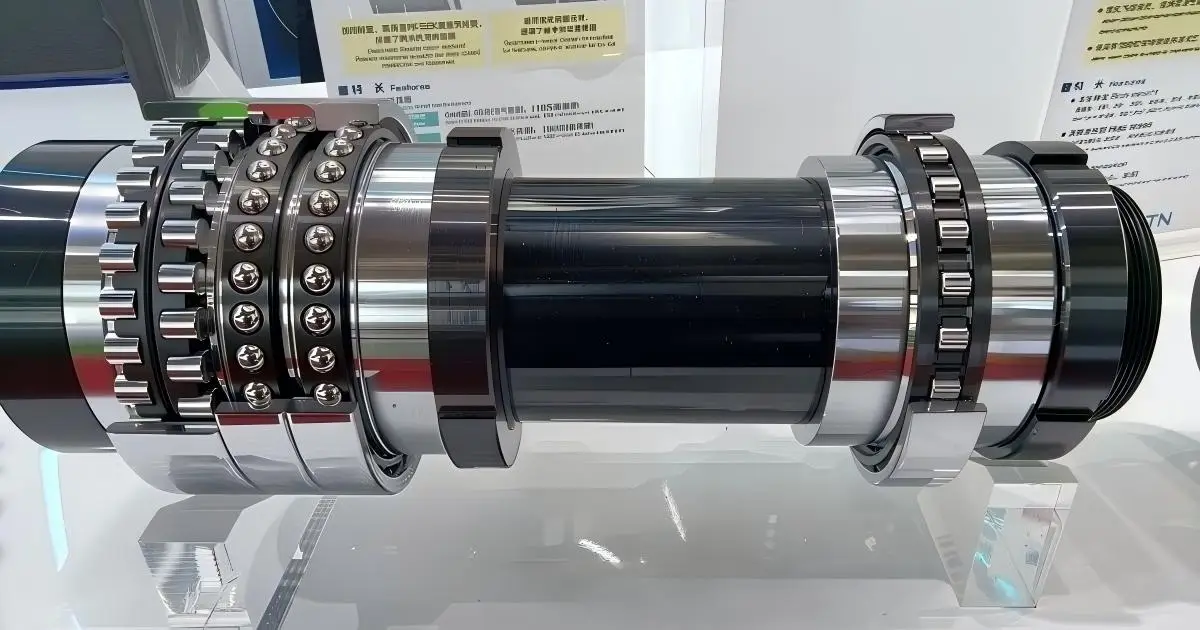

Machine Tool Bearing Failure Analysis: Common Causes, Symptoms and Prevention
Review common warning signs and potential causes of overheating, vibration, abnormal noise and increased runout.
Frequently Asked Questions About Machine Tool Bearings
Practical answers on spindle bearing selection, precision grades, matched sets, preload and rotary table applications.
What bearings are commonly used in machine tool spindles?
Angular contact ball bearings are widely used for combined radial and axial loads, while cylindrical roller bearings can provide high radial rigidity. The choice and arrangement depend on spindle speed, cutting loads, available space and thermal behavior.
How do I choose between P5, P4 and P2 precision grades?
P5, P4 and P2 specify progressively tighter bearing tolerances. P4 is a common choice for precision CNC spindles, while P2 may be required for particularly demanding running accuracy. P5 may suit less demanding applications. Confirm the grade against the spindle's accuracy requirements, mounting tolerances and operating conditions rather than machine type alone.
Can TEDIN supply matched bearing sets?
Yes. TEDIN can supply matched bearing sets for spindle units and ball screw supports, with arrangements and preload specifications selected for the application. Install matched sets in the specified order and orientation, and avoid mixing bearings from different sets unless their compatibility has been confirmed.
How should bearing preload be selected?
Preload must balance rigidity with heat generation and bearing life. Lighter preload is often preferred at high speeds, while higher preload may suit applications requiring greater stiffness. Final selection should account for loads, lubrication, bearing arrangement and thermal expansion; excessive preload can cause overheating and premature failure.
Which bearings suit rotary tables and indexing units?
Crossed roller bearings and axial-radial rotary table bearings are common options for supporting combined loads and overturning moments. Selection depends on table size, load capacity, required rigidity, rotational accuracy, speed and mounting space.
What information should I provide for bearing selection or replacement?
Start with the full bearing designation, including suffixes, or a drawing showing dimensions and mounting details. If available, include operating speed, radial and axial loads, lubrication, precision grade, preload and bearing arrangement. For replacements, share the original bearing markings and any operating issues to help assess compatibility.
Find the Right Bearings for Your Machine Tool Application
Send your bearing model, drawing or application requirements, including operating speed, loads, precision grade and mounting conditions. TEDIN can help evaluate bearing selection, replacement options or custom solutions for spindles, rotary tables and other machine tool systems.
