292, 293 & 294 Series
Spherical Roller Thrust Bearings
Spherical roller thrust bearings carry axial loads in one direction, together with accompanying radial loads. The spherical housing washer raceway allows self-alignment within the limits of the bearing design and operating conditions.
Spherical Roller Thrust Bearing

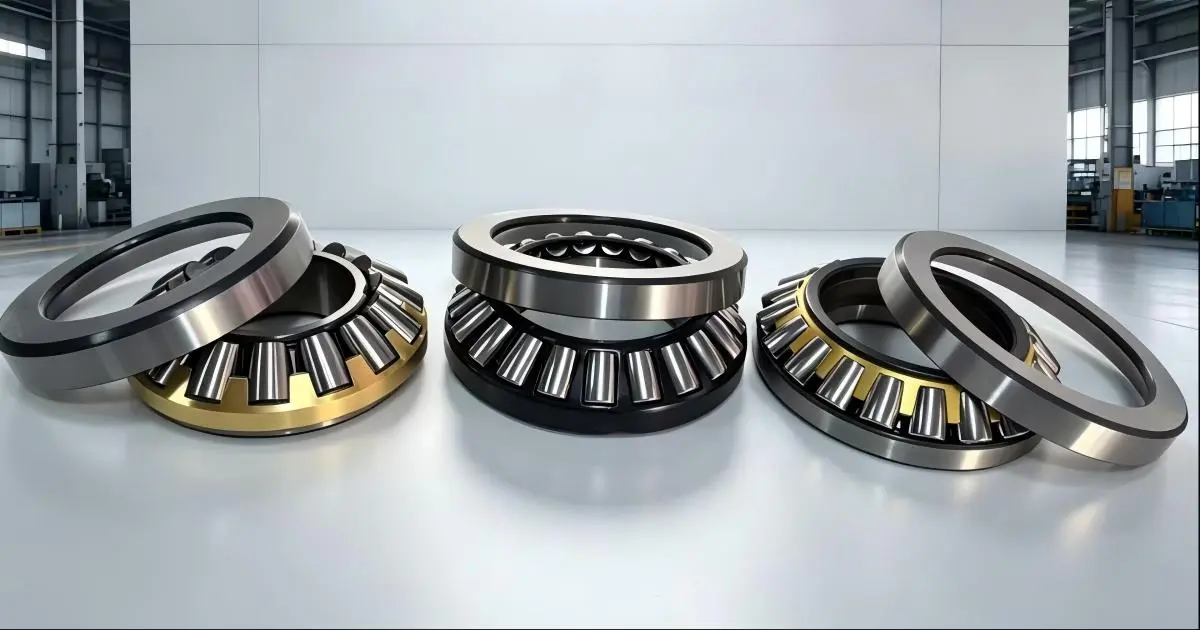

Shaft washer, roller assembly and housing washer
Series
292 / 293 / 294
Different cross-sections.
Load Direction
One-Way Axial Load
Radial load subject to model limits.
Alignment
Self-Aligning
Within specified misalignment limits.
For Quotation
Model & Quantity
Include all designation suffixes.
292, 293 and 294 Series
At the same bore diameter, these spherical roller thrust bearing series increase in cross-section from 292 to 293 to 294. Compare the series below, then check individual models for dimensions and load ratings.

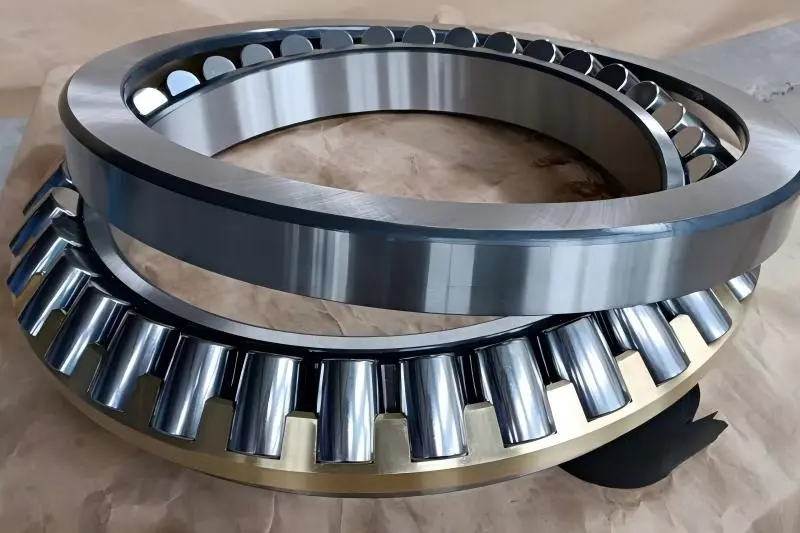

292 Series
The most compact of the three series for a given bore diameter. Check this range when mounting space is limited, then confirm that the selected model meets your load requirements.
View 292 Models

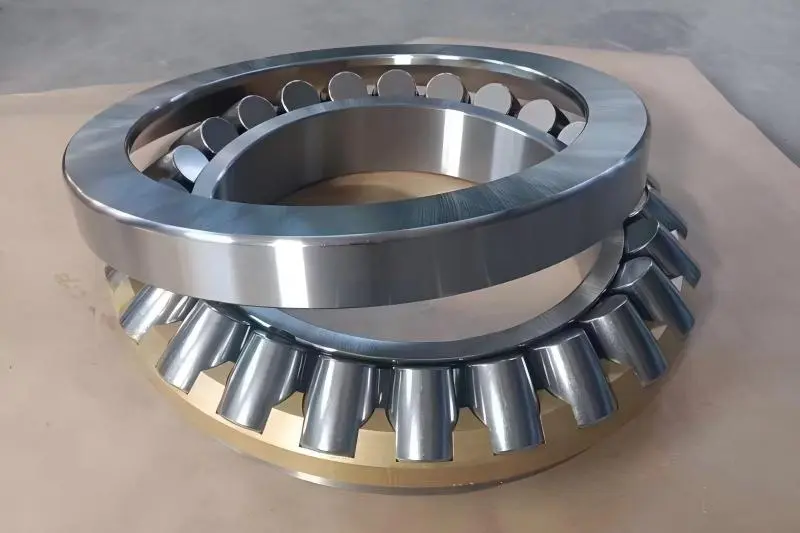

293 Series
Between the 292 and 294 series in cross-section. Compare its outside diameter, bearing height and load ratings when selecting a bearing for an existing shaft and housing.
View 293 Models

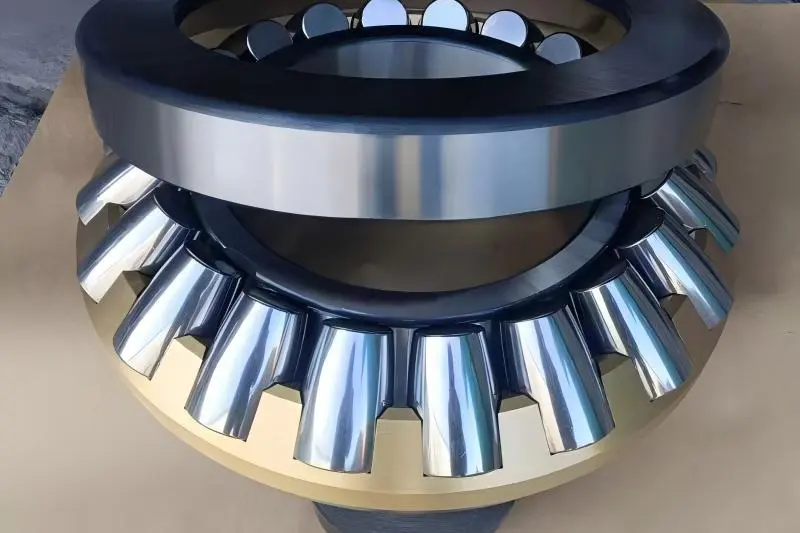

294 Series
The largest cross-section of the three, generally offering higher load ratings at the same bore diameter. Check the mounting space needed for its outside diameter and bearing height.
View 294 ModelsChecks Before Selection or Replacement
For a replacement enquiry, include the complete bearing designation and installation details. The following information helps identify differences that boundary dimensions alone may not reveal.
| Check Item | Information to Provide | Purpose of the Check |
|---|---|---|
| Complete designation | Bearing number, all suffixes and clear photographs of the markings on the existing bearing. | Identify the specified design and any manufacturer-specific designation details. |
| Dimensions & mounting | Bore diameter, outside diameter, total height and available shaft, housing or assembly drawings. | Check the bearing envelope, fits, abutments and support of the shaft and housing washers. |
| Applied loads | Axial and radial loads, thrust direction, and any peak, shock or reversing loads. | Review combined loading and whether the arrangement supports the required thrust directions. |
| Speed & duty cycle | Operating speed, continuous or intermittent duty, start-stop frequency and light-load operating periods. | Check speed suitability and minimum axial load requirements throughout the operating cycle. |
| Lubrication & temperature | Lubrication method, lubricant grade, supply arrangement and normal operating temperature. | Review lubrication and thermal conditions together with the proposed bearing design and speed. |
| Damage history, if applicable | Photographs of damaged parts, service hours, symptoms before removal and any inspection findings. | Identify operating or mounting issues that may need attention before fitting a replacement. |
Matching boundary dimensions does not by itself confirm interchangeability. The bearing design, suffix, load ratings and mounting requirements also need to be checked.
Bearing Design & Load Conditions
One-Way Axial Support
One bearing carries axial load in one direction. Reversing thrust requires support for the opposite direction.
Combined Axial & Radial Loads
Radial load can be carried together with axial load. Check the selected model’s permissible combined-load limits.
Self-Aligning & Separable
The housing washer separates from the shaft washer and roller assembly. Self-alignment is limited; correct seating and support remain essential.
Typical Applications & Operating Conditions
Application examples below. Suitability depends on the loads and bearing arrangement.
Vertical Pumps
Load source: Hydraulic thrust and rotating assembly weight.
Check: Thrust direction, radial support and lubrication in the vertical arrangement.
Extruder Drives
Load source: Axial reaction from the extrusion screw.
Check: Peak thrust, operating temperature and minimum axial load during light-load operation.

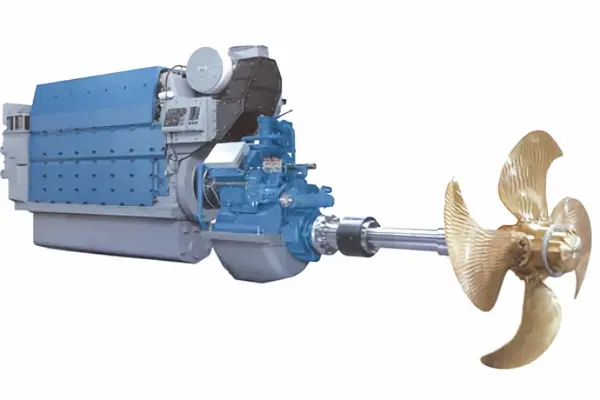

Marine Propulsion
Load source: Propeller thrust transmitted through the shaft.
Check: Support for reversing thrust, shaft alignment and lubricant supply.
Supply Details & Technical Documents
Specify any drawing, inspection or traceability requirements with your enquiry. Confirm the agreed supply scope before ordering.
| Item | Details to Confirm |
|---|---|
| Bearing Specification | Complete designation, dimensions, cage type and any special technical requirements. |
| Technical Drawing | Required drawing details, including mounting dimensions, tolerances and washer support requirements. |
| Inspection & Traceability | Required inspection items, report format and batch identification. Document availability must be confirmed. |
| Order & Delivery | Quantity, lead time, packaging and any preservation requirements for transport or storage. |
Spherical Roller Thrust Bearing FAQ
Can matching dimensions confirm a replacement?
No. Matching bore, outside diameter and height is only the first check. Internal design, cage, load ratings and mounting requirements may differ between manufacturers.
Do bearing suffixes mean the same across brands?
Not necessarily. Suffix meanings are manufacturer-specific. Provide the complete designation and brand, rather than matching suffix letters alone.
Can washers and roller assemblies be mixed between brands?
Do not assume component interchangeability, even when boundary dimensions match. Use a complete bearing assembly unless component compatibility has been explicitly verified.
Is grease lubrication suitable?
It depends on the bearing design, speed, load and temperature. Confirm the lubrication method for the selected model; grease should not be assumed to replace an existing oil system.
Discuss Your Spherical Roller Thrust Bearing Requirements
Send your bearing designation or drawing, required quantity and application details. For replacements, include the original brand and complete suffix. TEDIN can review the specification and confirm supply details before quotation.
