Machine Tool Bearing Replacement for CNC Spindles and Rotary Tables
TEDIN helps customers replace precision machine tool bearings by reviewing old bearing models, drawings, samples and working conditions, including CNC spindle bearings, rotary table bearings, matched bearing sets and imported bearing alternative solutions.
Replacement Support for Precision Machine Tool Bearings
Machine tool bearing replacement is not only a model number match. TEDIN reviews bearing structure, installation conditions and application risks before recommending a replacement solution.
Key Points in Replacement Review
TEDIN checks whether the replacement bearing can match the original machine position, mounting space, precision requirement and operating conditions, especially for spindle, rotary table and grinding machine applications.
- Confirm bearing structure and installation compatibility
- Review accuracy, preload and rigidity requirements
- Check speed, load, lubrication and temperature conditions
- Evaluate risks such as noise, heat, vibration and accuracy loss
How We Support Replacement Projects
Based on the available bearing information, TEDIN helps customers compare standard replacement, matched bearing sets, imported alternatives or custom-manufactured precision bearings.
- Standard replacement for common precision bearing models
- Matched bearing sets for spindle and rotary table positions
- Custom production for non-standard dimensions or structures
- Alternative solutions for discontinued or long-lead imported bearings
When Do Machine Tool Bearings Need Replacement?
In precision machine tools, bearing wear usually appears first as noise, heat, vibration or accuracy loss. Early review helps reduce spindle damage and unplanned downtime.
Spindle Noise
Abnormal noise during high-speed operation or acceleration.
Temperature Rise
Bearing temperature increases after preload, wear or lubrication changes.
Vibration Increase
Higher vibration affects surface finish and running stability.
Accuracy Loss
Runout, repeatability or machining accuracy becomes unstable.
Positioning Error
B-axis, C-axis or rotary table indexing accuracy decreases.
Obsolete Model
Original bearing model is discontinued or imported lead time is too long.
How to Start a Machine Tool Bearing Replacement Review
Start with the original bearing model, a technical drawing or a sample—whichever is available. TEDIN uses this information to identify the bearing and determine what further checks are needed before confirming a replacement option.

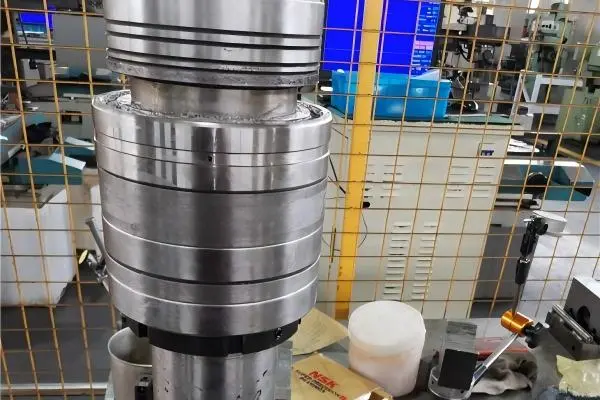

Review by Original Model
Provide the full bearing designation, including suffixes, manufacturer markings and any matched-set codes. Clear photos of the bearing and packaging help identify details that a basic model number may not capture.
Review by Drawing
Provide a bearing or assembly drawing showing bore, outside diameter, width and mounting interfaces. Include tolerances, precision grade and preload requirements where specified; a dimension sketch can support an initial review.
Review by Sample
If the model or drawing is unavailable, start with clear photos and measured dimensions. TEDIN may request a physical sample for further inspection; wear or damage can limit what the sample reveals about original tolerances and preload.
Have an Original Model, Drawing or Sample?
Submit the details you have to start a replacement review. For drawings and photos, email info@tedinbearings.com. Contact TEDIN before shipping a physical sample.
Machine Tool Bearing Positions We Help Replace
TEDIN supports replacement review for critical machine tool positions where accuracy, preload and running stability directly affect machining results.
CNC Spindles
Replacement review for high-speed machine tool spindle bearings in machining centers and CNC lathes.
Rotary Tables
Bearing replacement for rotary table bearings used in B-axis, C-axis, indexing tables and precision rotary units.
Grinding Machines
Support for grinding spindle positions where runout, heat and vibration must be controlled.
Machine Tool Gearboxes
Replacement review for gearbox bearings used in machine tool transmission systems with combined load and continuous operation.
Ball Screw Support Bearings
Angular contact bearing replacement for ball screw support units and feed drive systems.
What Information Is Needed for Bearing Replacement?
Send the old model, drawing, sample photos or key dimensions. TEDIN will review the replacement direction based on the available information.
| Information | What to Provide | Why It Matters |
|---|---|---|
| Old model number | Bearing code, marking, imported reference or original part number. | Helps identify the original bearing type and possible replacement direction. |
| Key dimensions | Bore, outside diameter, width and mounting-related dimensions. | Confirms whether the replacement can fit the original machine position. |
| Drawing or sketch | Technical drawing, installation drawing or simple dimension sketch. | Useful for non-standard bearings or drawing-based production. |
| Sample photos | Photos of bearing markings, raceway, cage and mounting position. | Supports review when the model number is missing or unclear. |
| Machine position | CNC spindle, rotary table, grinding spindle, gearbox or ball screw support. | Different positions require different accuracy, rigidity and bearing arrangement. |
| Accuracy grade | P5, P4, P2 or original precision requirement. | Affects runout, machining accuracy and spindle stability. |
| Preload or clearance | Original preload, clearance or matching condition. | Important for rigidity, temperature rise and bearing life. |
| Working conditions | Speed, load direction, lubrication method and operating temperature. | Helps check whether the replacement bearing is suitable for actual use. |

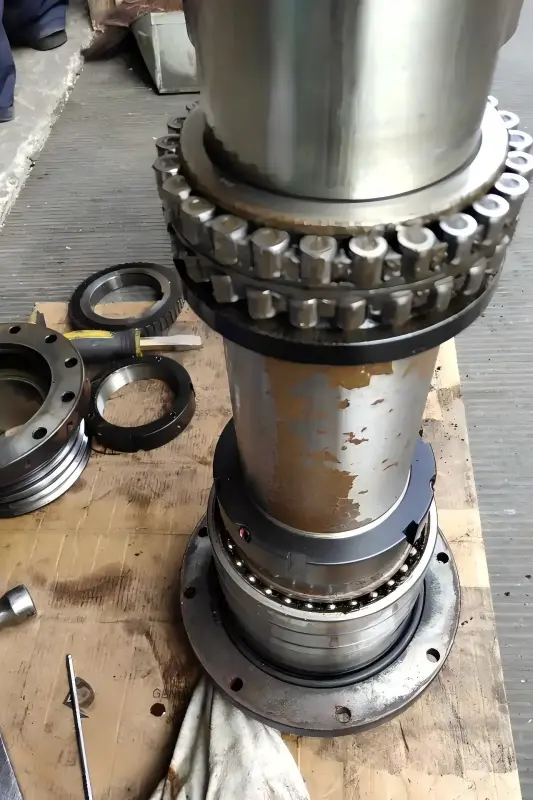

How TEDIN Reviews Replacement Projects
TEDIN checks the original bearing data, installation dimensions and machine requirements before confirming a replacement solution.
Identify the Original Bearing
Check the old model number, bearing type, markings, imported reference or sample photos.
Check Installation Dimensions
Confirm bore, outside diameter, width, mounting space and fitting dimensions.
Review Accuracy and Preload
Check precision grade, preload, clearance, rigidity and bearing arrangement.
Confirm Replacement Solution
Recommend a standard bearing, matched set or custom replacement based on the review.
Bearing Replacement Options After Technical Review
Depending on the original bearing specifications and assembly requirements, TEDIN can support standard replacements, imported bearing alternatives, matched sets and custom designs. For an overview of bearing types and applications, explore our machine tool bearings.
Standard Bearing Replacement
Supply a standard bearing model where dimensions, tolerances, accuracy and internal configuration meet the reviewed requirements of the existing assembly.
Imported Bearing Alternatives
Develop replacement options for imported bearings with discontinued references or supply constraints, subject to specification comparison and application verification.
Matched Bearing Set Replacement
Supply paired or multi-bearing sets with agreed matching, preload or clearance requirements, accounting for the arrangement rather than replacing individual bearings in isolation.
Custom Bearing Replacement
Develop non-standard replacements where catalog bearings cannot meet the required dimensions, flange geometry or mounting interfaces. Options include custom tapered roller bearings.
Machine Tool Bearing Replacement Cases
Explore typical machine tool bearing replacement projects supported by TEDIN, including rotary table bearing replacement, imported precision bearing alternatives and custom angular contact bearing solutions for special machine tool applications.
B-Axis Rotary Table Bearing Replacement Case
TEDIN supported a five-axis CNC machine tool project with a matched tapered roller bearing set for the rotary B-axis, helping restore rigidity, smooth rotation and stable positioning accuracy during repeated indexing.
- Application: B-Axis Rotary Table
- Solution: Matched Tapered Roller Bearing Set
- Machine Type: Five-Axis CNC Machine Tool
Compatible Gamet-Type Bearing Replacement Case
TEDIN provided a compatible replacement solution for a heavy-duty roll grinding machine spindle, focusing on precision tapered roller bearing structure review, raceway control and stable running accuracy after assembly.
- Application: Heavy-Duty Roll Grinding Machine
- Bearing Type: Gamet-Type Precision Tapered Roller Bearing
- Result: Stable Accuracy After Assembly
540805A Angular Contact Ball Bearing Replacement Case
TEDIN developed a customized 540805A angular contact ball bearing replacement for an oil drill pipe threading lathe, matching the required dimensions, locating flange structure and machine tool precision requirements.
- Application: Oil Drill Pipe Threading Lathe
- Bearing Type: Customized Angular Contact Ball Bearing
- Replacement Basis: Dimensions and Locating Flange Structure
Related Precision Bearings for Machine Tool Replacement
Explore precision bearing products commonly used in machine tool spindle systems, rotary tables, ball screw supports and high-rigidity replacement applications.

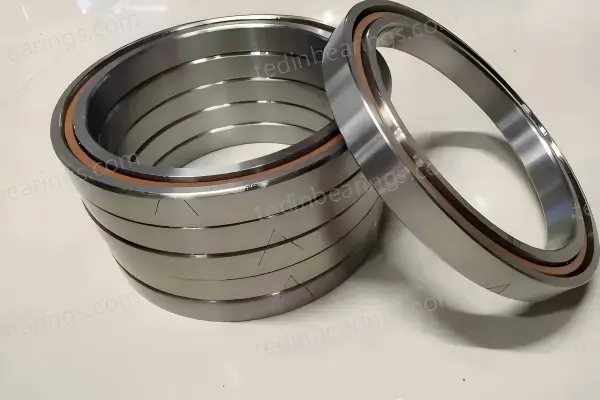

Matched Angular Contact Ball Bearings
Precision matched angular contact ball bearing sets for high-speed machine tool spindle replacement and rebuilding projects.
Double Row Cylindrical Roller Bearings
High-rigidity cylindrical roller bearings used in machine tool spindles where radial stiffness and precision are required.
Matched Tapered Roller Bearing Sets
Matched tapered roller bearing sets for applications requiring combined load capacity, rigidity and controlled preload.
Crossed Roller Bearings
Compact high-rigidity crossed roller bearings for rotary tables, indexing units, robots and precision motion mechanisms.
YRT Turntable Bearings
Precision YRT turntable bearings for CNC rotary tables, indexing tables and high-accuracy positioning applications.
Double Direction Thrust Angular Contact Ball Bearings
Precision thrust angular contact ball bearings for ball screw supports, feed drives and axial positioning units.
Technical Guides for Spindle Bearing Replacement
Explore practical guides on bearing identification, preload, shaft and housing fits, and checks after replacement. Use these resources alongside the spindle manufacturer's specifications and assembly instructions.

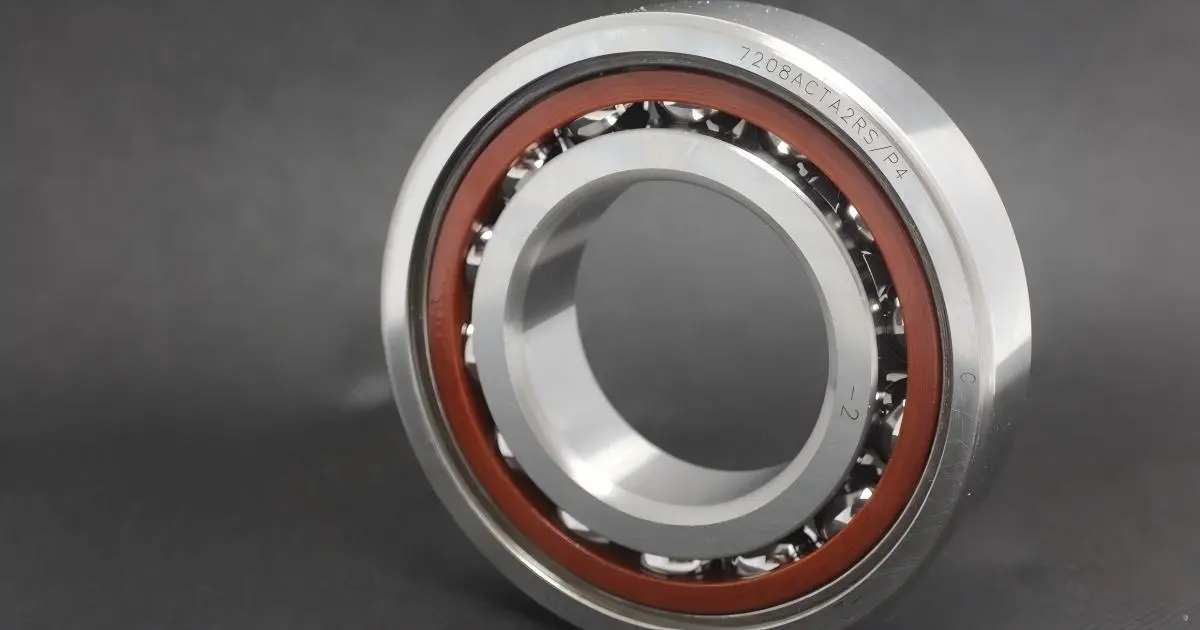

Spindle Bearing Numbers and Suffixes
Learn what markings to record before replacement and why the basic bearing number does not define the complete spindle bearing specification.
Read Identification Guide →
CNC Spindle Bearing Preload
Understand how preload affects stiffness and heat, and why the approved preload specification matters when replacing spindle bearings.
Read Preload Guide →
CNC Spindle Bearing Fits and Tolerances
Review how shaft and housing fits affect bearing support and installed preload, and why mounting tolerances are separate from bearing precision grade.
Read Fits Guide →

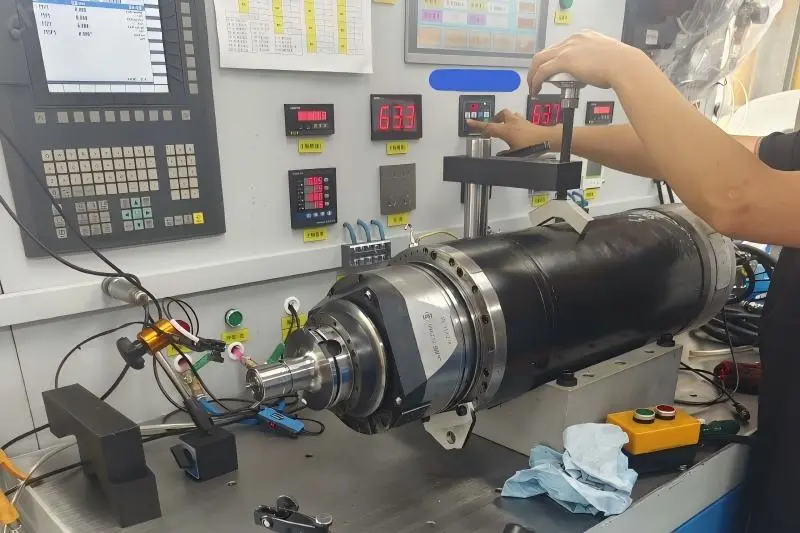

Spindle Bearing Run-In After Replacement
Learn the difference between grease run-in and spindle commissioning, including temperature, vibration and noise checks before normal operation.
Read Run-In Guide →Frequently Asked Questions About Machine Tool Bearing Replacement
Answers to common questions about replacing spindle bearings, ball screw support bearings, rotary table bearings and other precision bearings used in CNC machine tools.
Can TEDIN replace imported machine tool bearing models?
Yes. TEDIN can review imported machine tool bearing models and recommend replacement options based on bearing type, boundary dimensions, precision grade, preload, arrangement and actual application position.
What if the original bearing model is missing or unclear?
If the original model number is missing, worn or unclear, you can send bearing photos, measured dimensions, machine position details, drawings or a bearing sample for technical review.
Can TEDIN provide matched spindle bearing sets?
Yes. TEDIN can provide matched angular contact ball bearing sets for machine tool spindles according to bearing arrangement, preload direction, precision grade and operating requirements.
Do you support custom bearing replacement?
Yes. For obsolete, special-size or non-standard machine tool bearings, TEDIN can review custom bearing production based on drawings, samples or accurately measured dimensions.
Which machine tool positions can TEDIN support?
TEDIN supports bearing replacement for spindle units, ball screw supports, rotary tables, indexing heads, tool changers, precision drive systems and other critical machine tool positions.
What information should I send for a replacement review?
Please send the old bearing model, key dimensions, bearing photos, machine position, accuracy grade, preload or clearance requirements, arrangement details and working conditions if available.
Need Help with Machine Tool Bearing Replacement?
Send your old bearing model, dimensions, photos, precision grade, preload or clearance requirements and machine position. TEDIN can review your replacement request and recommend a suitable precision bearing solution.
